RS Smart
Due to the innovative design that allows you to hide the bottom strip in the box, RS Smart takes less light than other similar products.

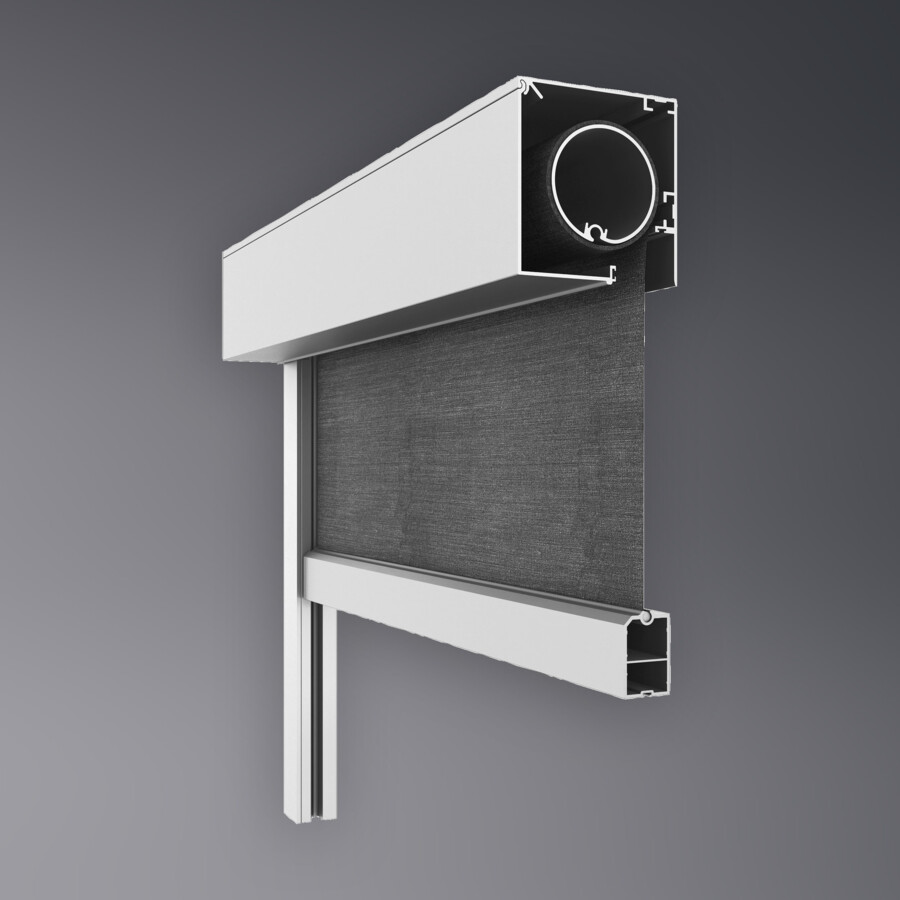

A box with side guides integrated with a fabric made of fiberglass and PVC, which is durable and resistant to weather conditions such as gusty wind, hail or rain. Additionaly, thanks to the properties of the used fabrics, they guarantee optical comfort inside the building - on the one hand, they do not give the effect of darkening and on the other hand they suppress the penetration of intense sunlight.
Smart 85 is a compact model that takes up the least space in the window. RS Smart 100 is a universal model, while RS Smart 130 can be used for very large areas - up to 6.0 mx 5.0 m. Another advantage of this model is the possibility of access to the box from below.
Advantages:
- reduce the operating costs of the facility;
- insect cover;
- protection against strong winds;
- 5 years warranty.
Parameters
Dimensions
Tube Ø63
| Max width | 300 cm |
| Max height | 140 cm |
| Max. area | 4,2 m2 |
Tube Ø58
| Max width | 300 cm |
| Max height | 200 cm |
| Max. area | 6,0 m2 |

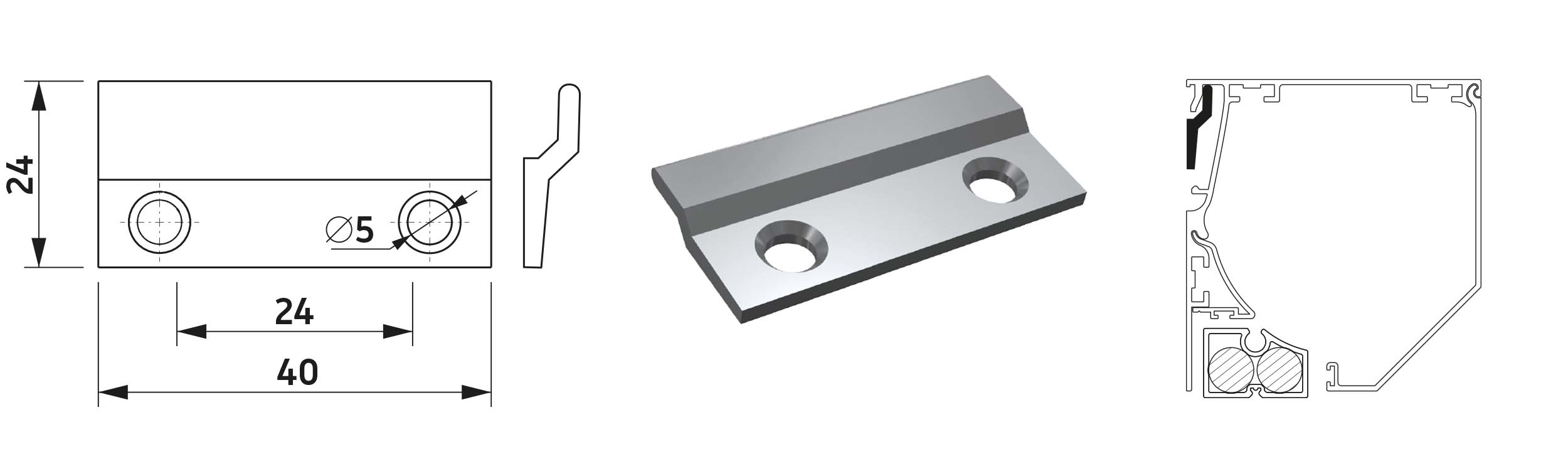

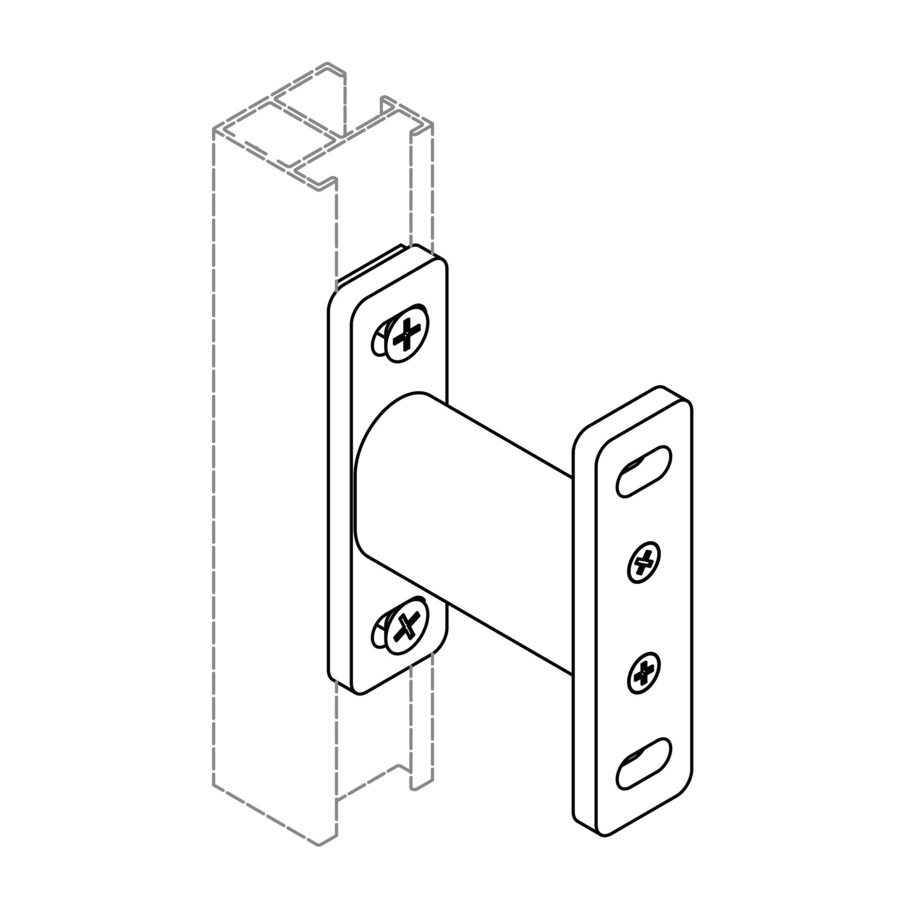

Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for with over 250 cm
4 supports for with over 350 cm

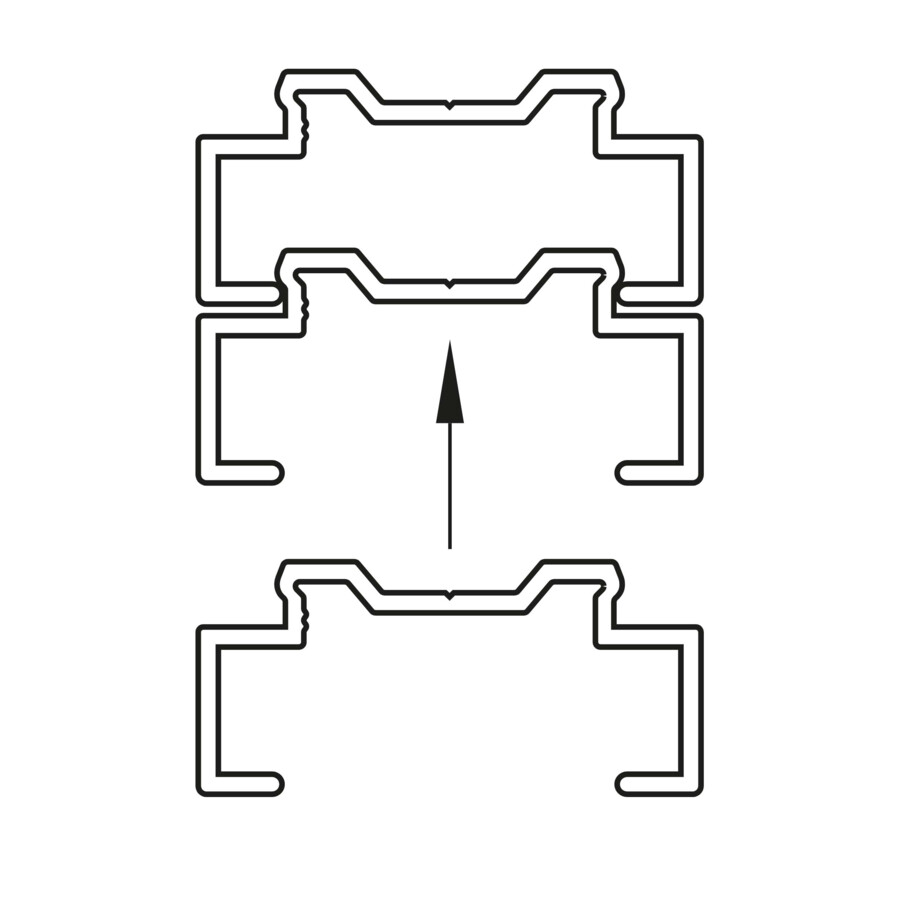

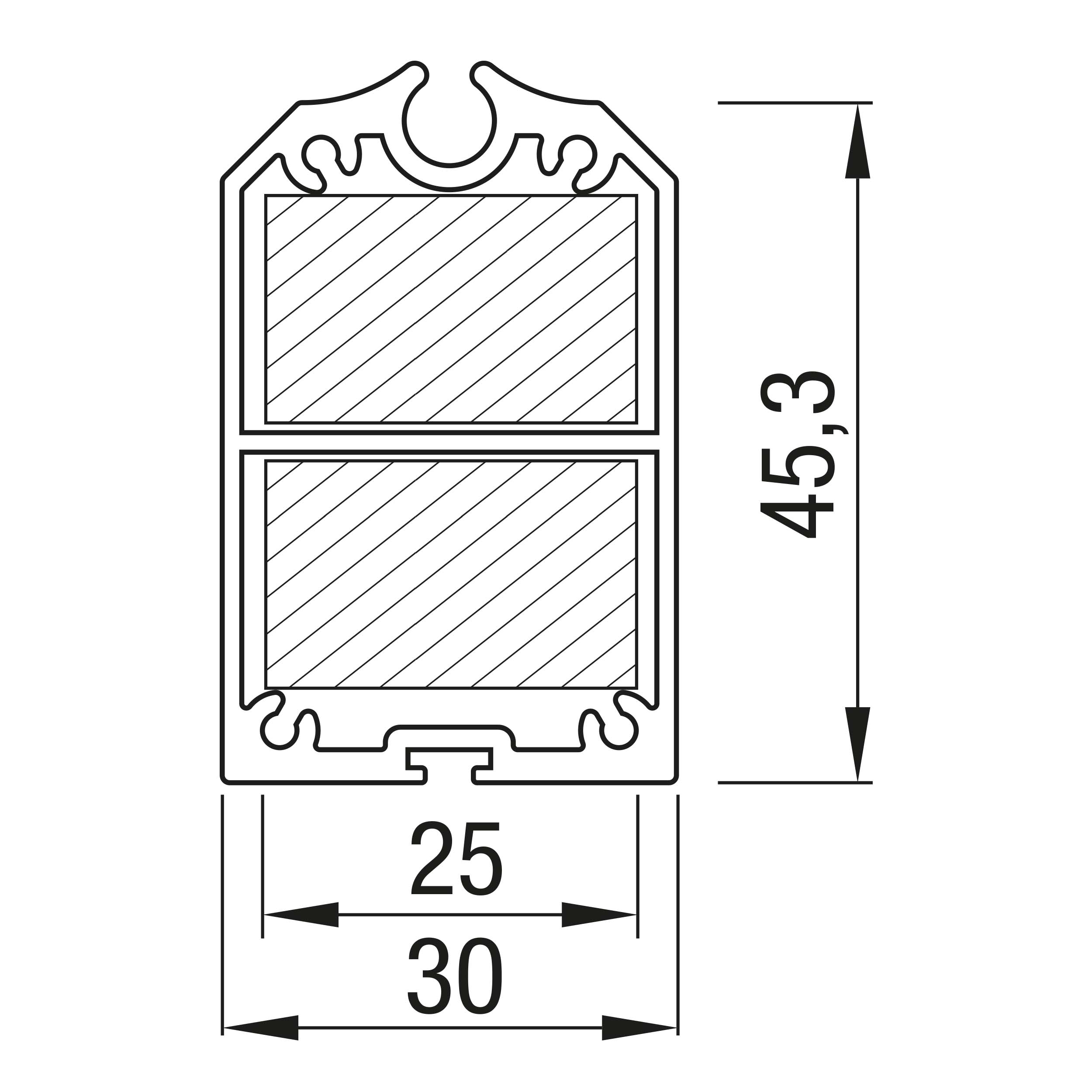

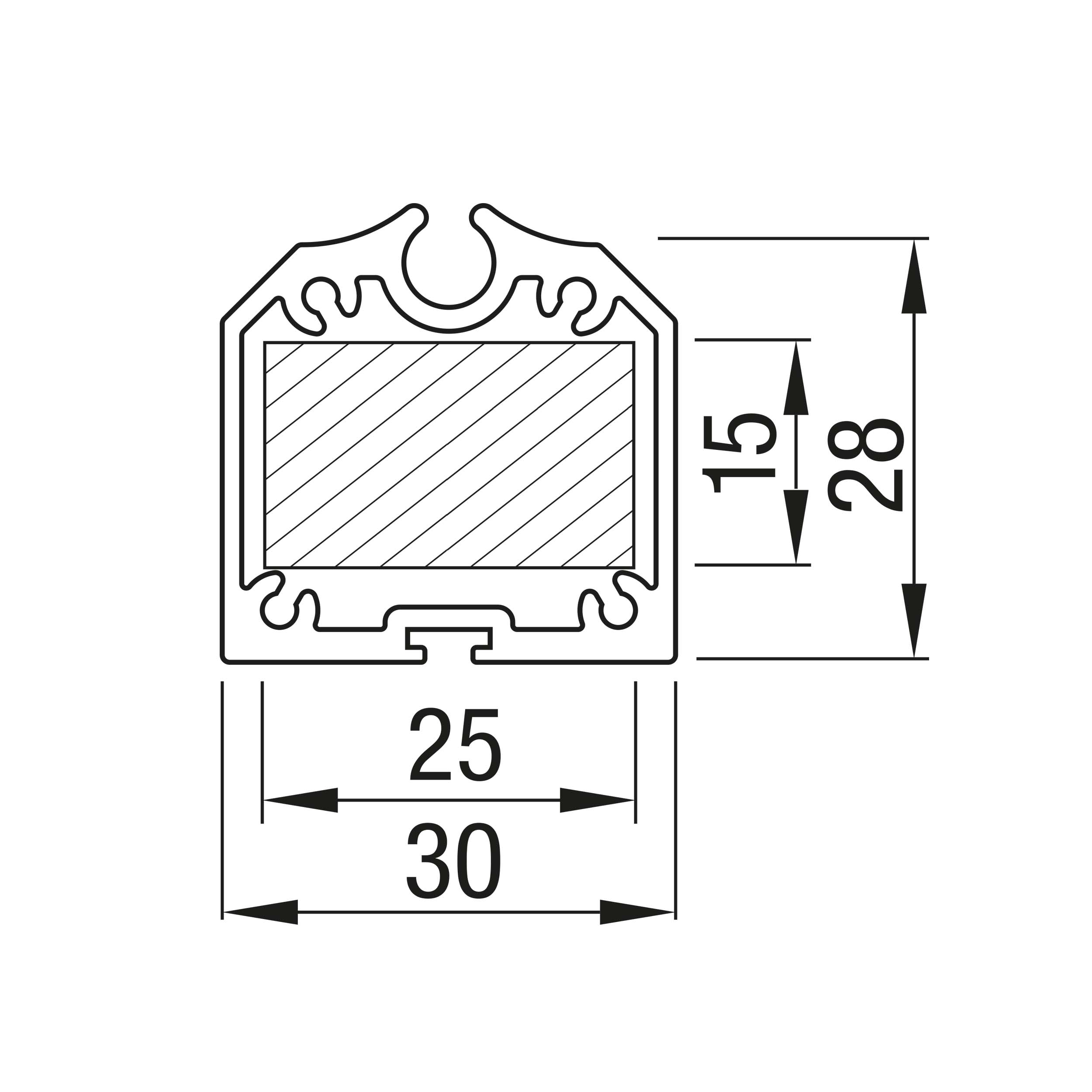

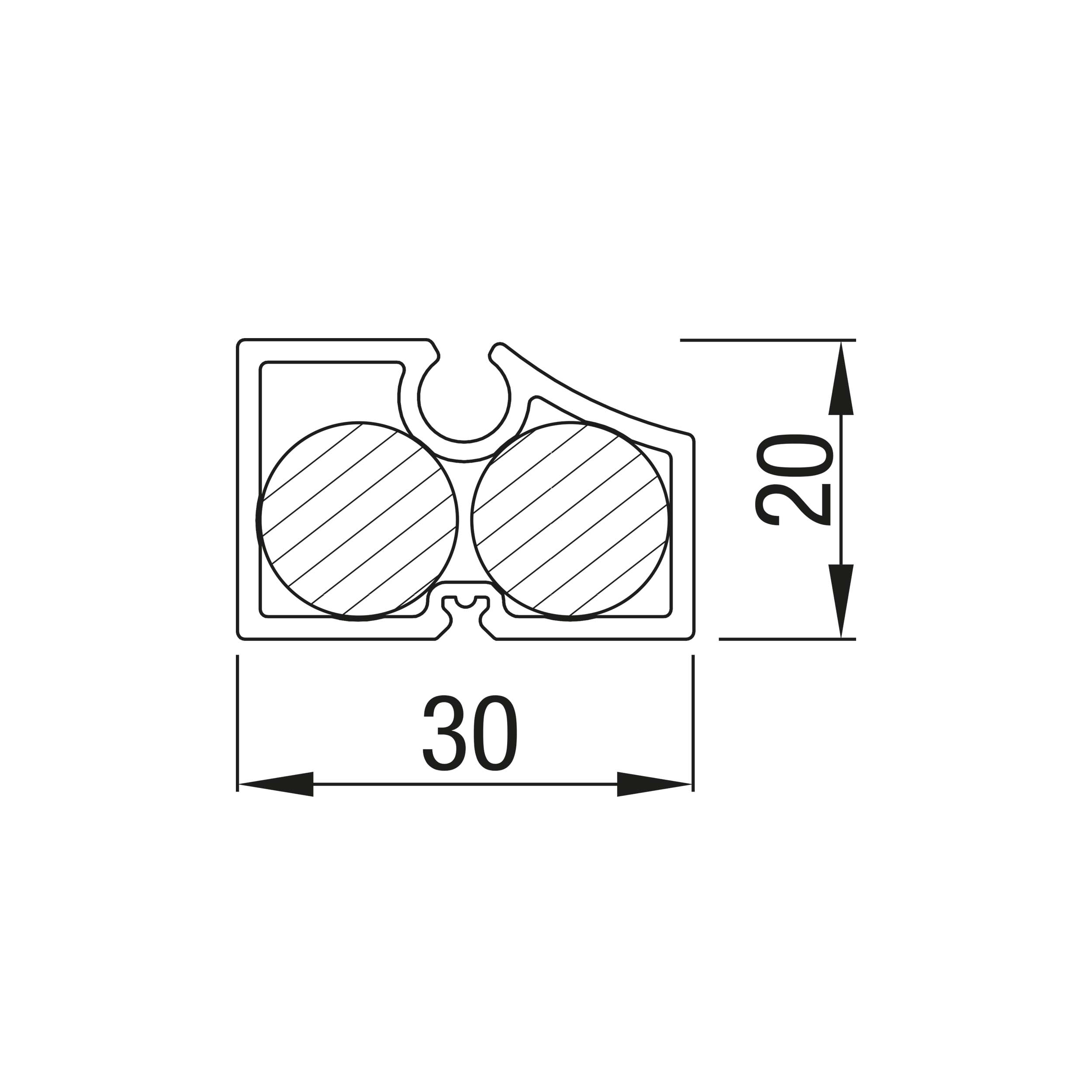

End slat
Parameters
Dimensions
Tube Ø63
| Max width | 300 cm |
| Max height | 140 cm |
| Max. area | 4,2 m2 |
Tube Ø58
| Max width | 300 cm |
| Max height | 200 cm |
| Max. area | 6,0 m2 |
Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for with over 250 cm
4 supports for with over 350 cm
End slat
Parameters
Dimensions
Tube Ø63
| Max width | 300 cm |
| Max height | 140 cm |
| Max. area | 4,2 m2 |
Tube Ø58
| Max width | 300 cm |
| Max height | 200 cm |
| Max. area | 6,0 m2 |
Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for with over 250 cm
4 supports for with over 350 cm
End slat
Parameters
Dimensions
Tube Ø63
| Max width | 400 cm |
| Max height | 300 cm |
| Max. area | 12,0 m2 |
End slat
Parameters
Dimensions
Tube Ø63
| Max width | 400 cm |
| Max height | 300 cm |
| Max. area | 12,0 m2 |
End slat
Parameters
Dimensions
Tube Ø63
| Max width | 400 cm |
| Max height | 300 cm |
| Max. area | 12,0 m2 |
End slat
Parameters
Dimensions
Tube Ø63
| Max width | 400 cm |
| Max height | 300 cm |
| Max. area | 12,0 m2 |
End slat
Parameters
Dimensions
Tube Ø78
| Max width | 400 cm |
| Max height | 600 cm |
| Max. area | 24,0 m2 |
Tube Ø85
| Max width | 540 cm |
| Max height | 500 cm |
| Max. area | 27,0 m2 |
Tube Ø100
| Max width | 600 cm |
| Max height | 280 cm |
| Max. area | 16,8 m2 |
Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for width over 250 cm
4 supports for width over 350 cm
5 supports for width over 450 cm
6 supports for width over 550 cm
PVC film options
End slat
Parameters
Dimensions
Tube Ø78
| Max width | 400 cm |
| Max height | 600 cm |
| Max. area | 24,0 m2 |
Tube Ø85
| Max width | 540 cm |
| Max height | 500 cm |
| Max. area | 27,0 m2 |
Tube Ø10
| Max width | 600 cm |
| Max height | 280 cm |
| Max. area | 16,8 m2 |
Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for width over 250 cm
4 supports for width over 350 cm
5 supports for width over 450 cm
6 supports for width over 550 cm
PVC film options
End slat
Parameters
Dimensions
Tube Ø78
| Max width | 400 cm |
| Max height | 600 cm |
| Max. area | 24,0 m2 |
Tube Ø85
| Max width | 540 cm |
| Max height | 500 cm |
| Max. area | 27,0 m2 |
Tube Ø100
| Max width | 600 cm |
| Max height | 280 cm |
| Max. area | 16,8 m2 |
Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for width over 250 cm
4 supports for width over 350 cm
5 supports for width over 450 cm
6 supports for width over 550 cm
PVC film options
End slat
Parameters
Dimensions
Tube Ø78
| Max width | 400 cm |
| Max height | 600 cm |
| Max. area | 24,0 m2 |
Tube Ø85
| Max width | 540 cm |
| Max height | 500 cm |
| Max. area | 27,0 m2 |
Tube Ø100
| Max width | 600 cm |
| Max height | 280 cm |
| Max. area | 16,8 m2 |
Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for width over 250 cm
4 supports for width over 350 cm
5 supports for width over 450 cm
6 supports for width over 550 cm
PVC film options
End slat
Parameters
Dimensions
Tube Ø78
| Max width | 400 cm |
| Max height | 600 cm |
| Max. area | 24,0 m2 |
Tube Ø85
| Max width | 540 cm |
| Max height | 500 cm |
| Max. area | 27,0 m2 |
Tube Ø100
| Max width | 600 cm |
| Max height | 280 cm |
| Max. area | 16,8 m2 |
Box supports
Standard bracket arrangement
2 supports for width below 249 cm
3 supports for width over 250 cm
4 supports for width over 350 cm
5 supports for width over 450 cm
6 supports for width over 550 cm
PVC film options
End slat

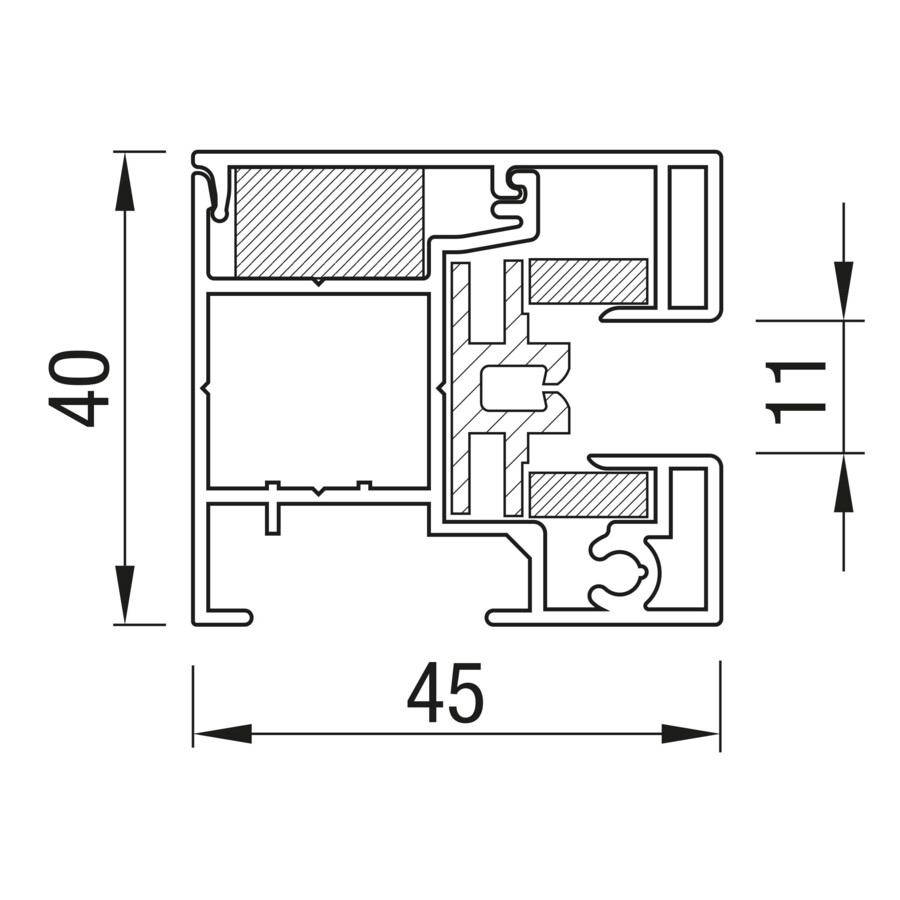

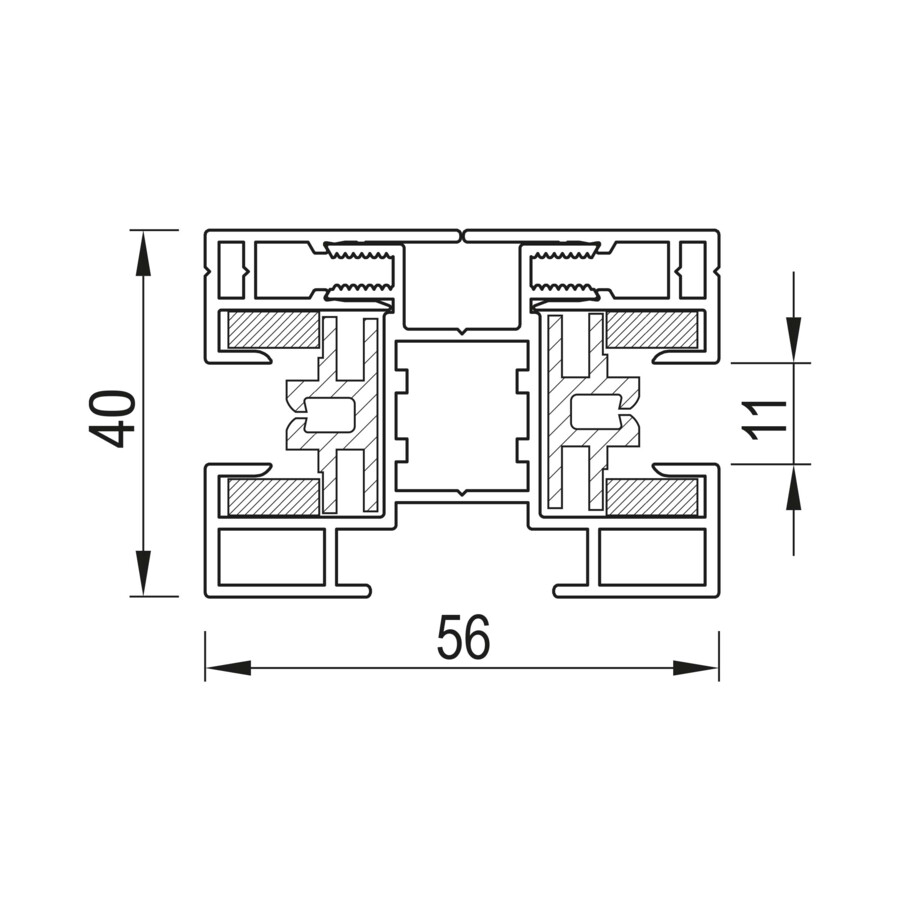

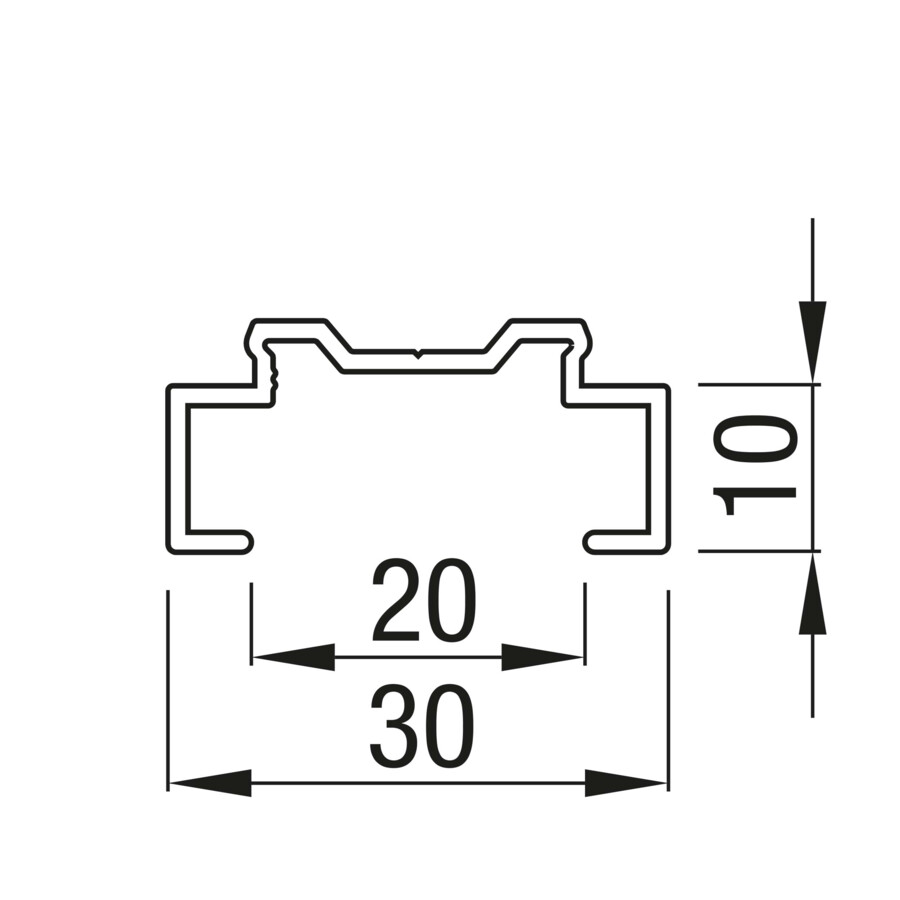

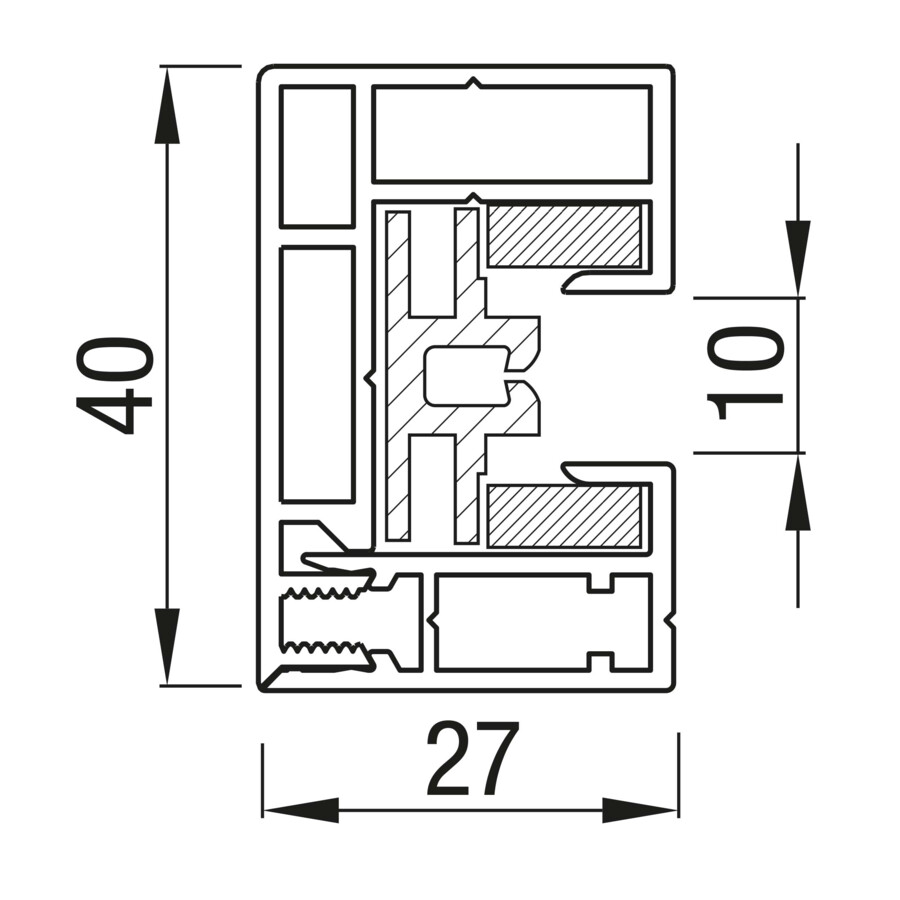

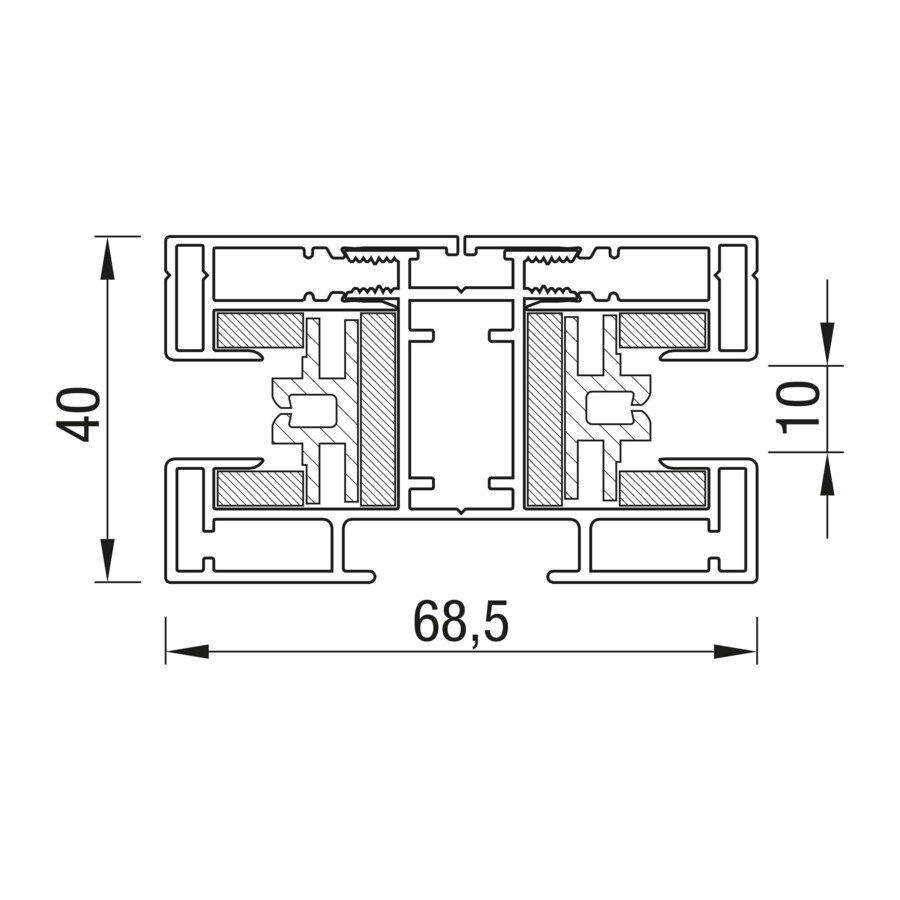

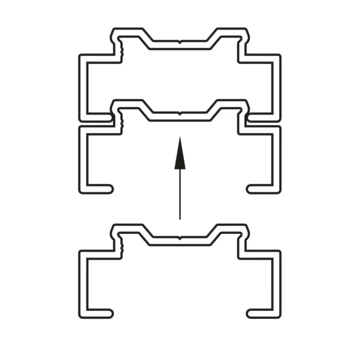

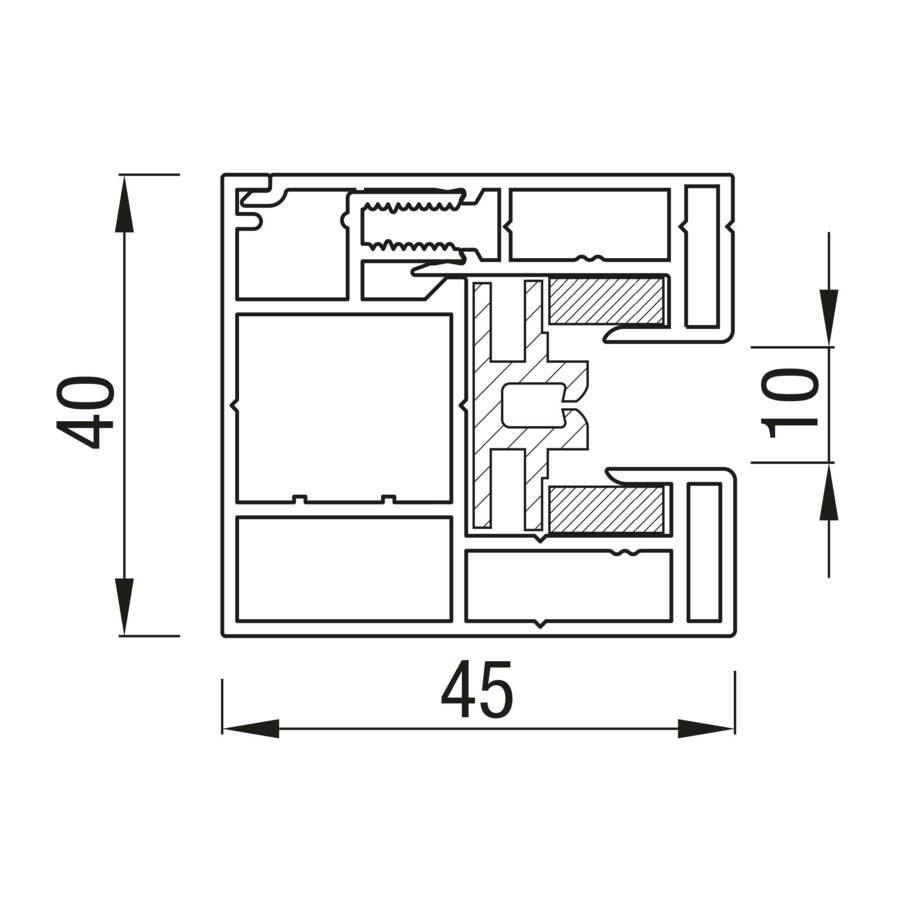

Guide rails
Akcesories
Colors
Standard casing colours RS Smart 85 45°
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
C0 - natural (anodised)
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Gray aluminium -
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
-
RAL 9S05
Black
Colors
Standard casing colours RS Smart 85 square
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
C0 - natural (anodised)
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Gray aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
-
RAL 9S05
Black
Colors
Standard casing colours RS Smart 85 half-round
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
C0 - natural (anodised)
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Gray aluminium -
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimme
(Structural Finish)
-
RAL 9S05
Black
Colors
Standard casing colours RS Smart 100 45°
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
C0 - natural (anodised)
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
-
RAL 9S05
Black -
RAL 7S21
Grey-black
Colors
Standard casing colours RS RS Smart 100 half-round
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
C0 - natural (anodised)
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
-
RAL 9S05
Black -
RAL 7S21
Grey-black
Colors
Standard casing colours RS Smart 100 square
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
C0 - natural (anodised)
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
-
RAL 9S05
Black -
RAL 7S21
Grey-black
Colors
Standard casing colours RS Smart 100 arc
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
C0 - natural (anodised)
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
-
RAL 9S05
Black -
RAL 7S21
Grey-black
Colors
Standard casing colours RS Smart 130 45°
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
Anodised
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
Colors
Standard casing colours RS Smart 130 half-round
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
Anodised
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
Colors
Standard casing colours RS Smart 130 square
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White -
Anodised
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S3
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
Colors
Standard casing colours RS Smart 100 boog
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
Anodised
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Bruin
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)
Colors
Standard casing colours RS Smart 130 square with revision
-
RAL 9001
Cream white
-
RAL 9010
White
-
RAL 9016
Traffic White
-
Anodised
-
RAL 7016
Anthracite gray
-
RAL 7039
Quartz gray
-
RAL 8019
Brown
-
STR 9S06
White aluminium
-
STR 9S07
Grijs aluminium
-
STR 7S39
Quartz gray
-
STR 7S16
Anthracite gray
-
tiger 29/80081
Iron Glimmer
(Structural Finish)

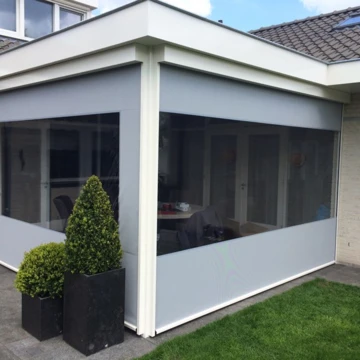

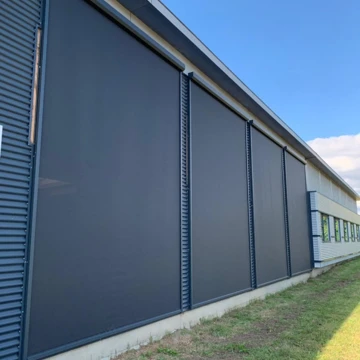

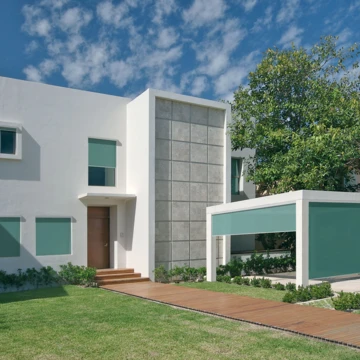

See the gallery of realizations from
