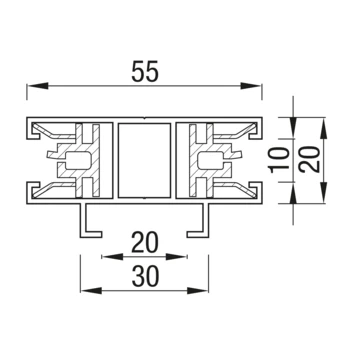

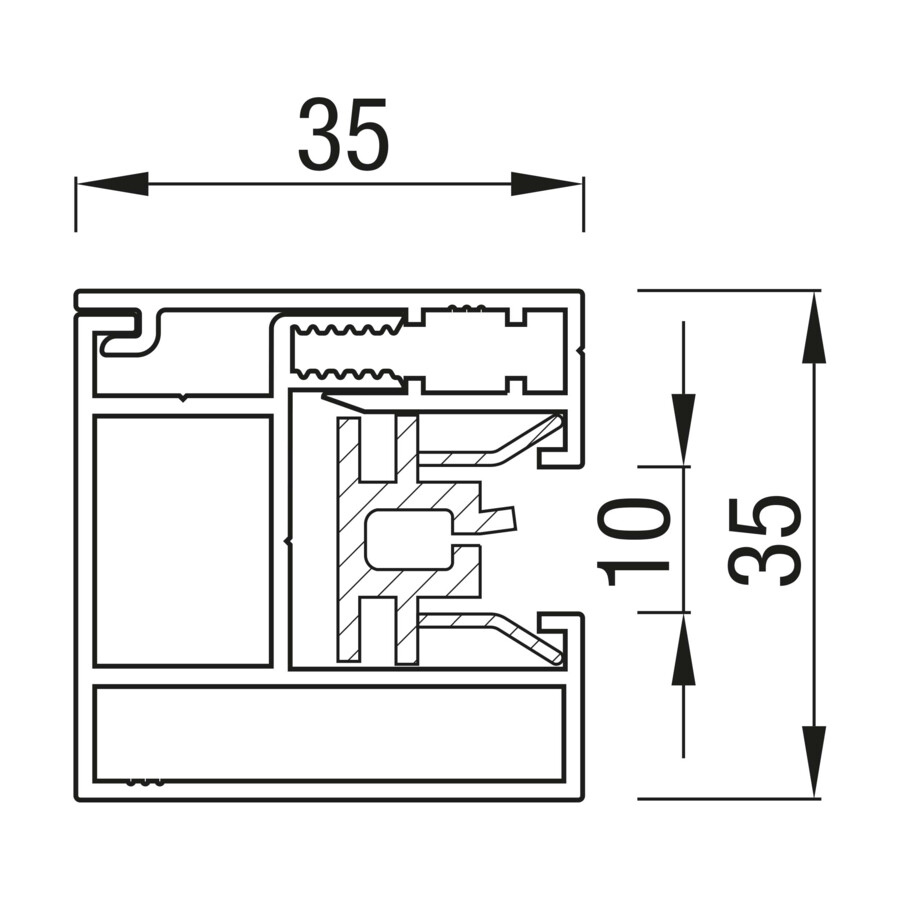

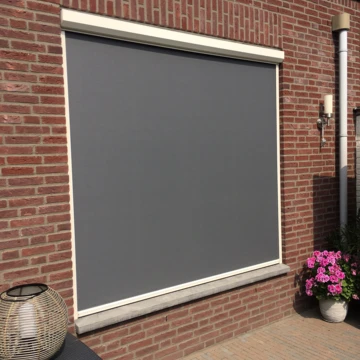

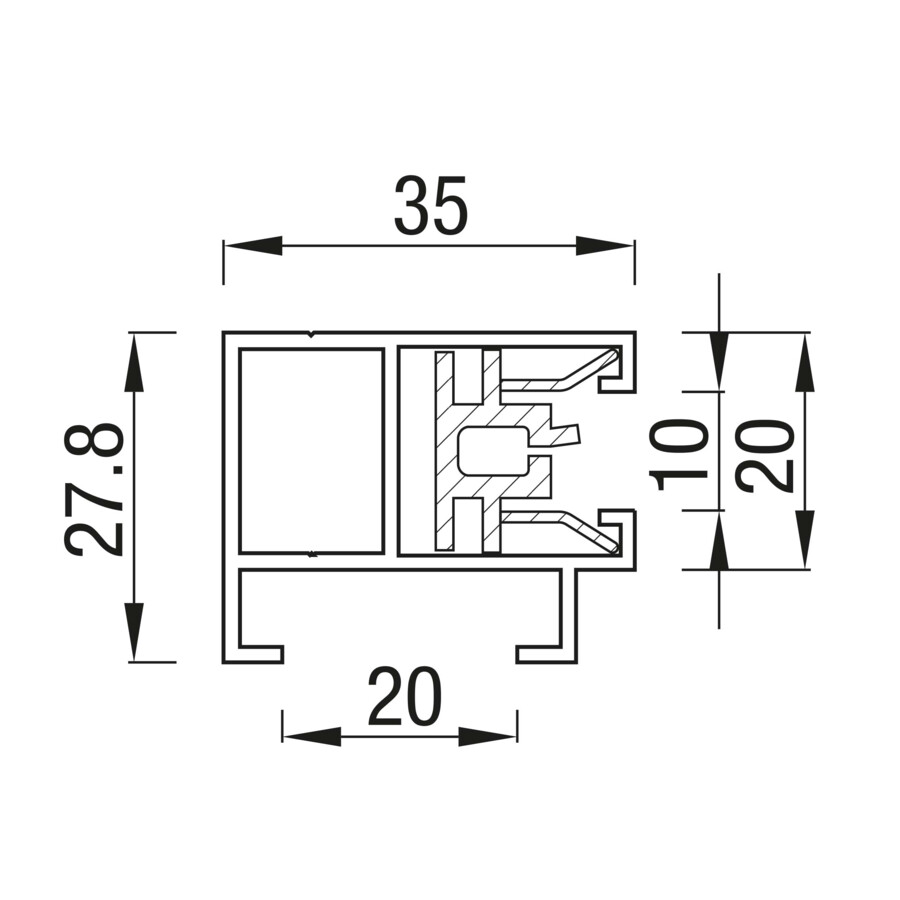

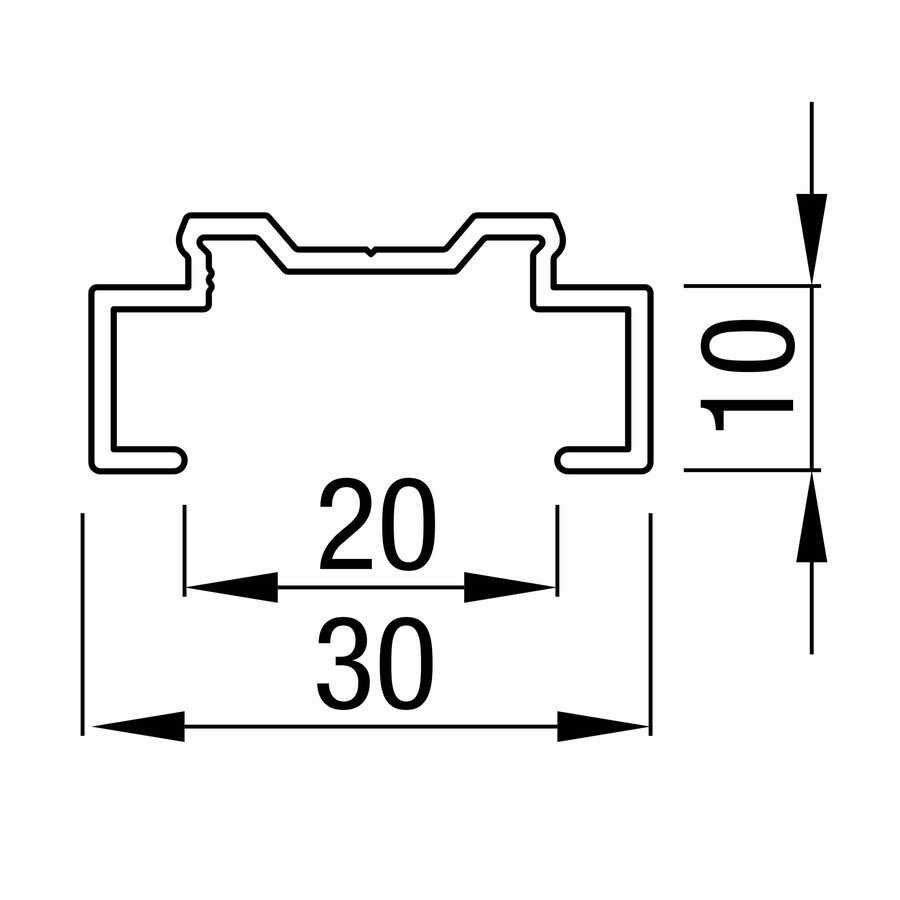

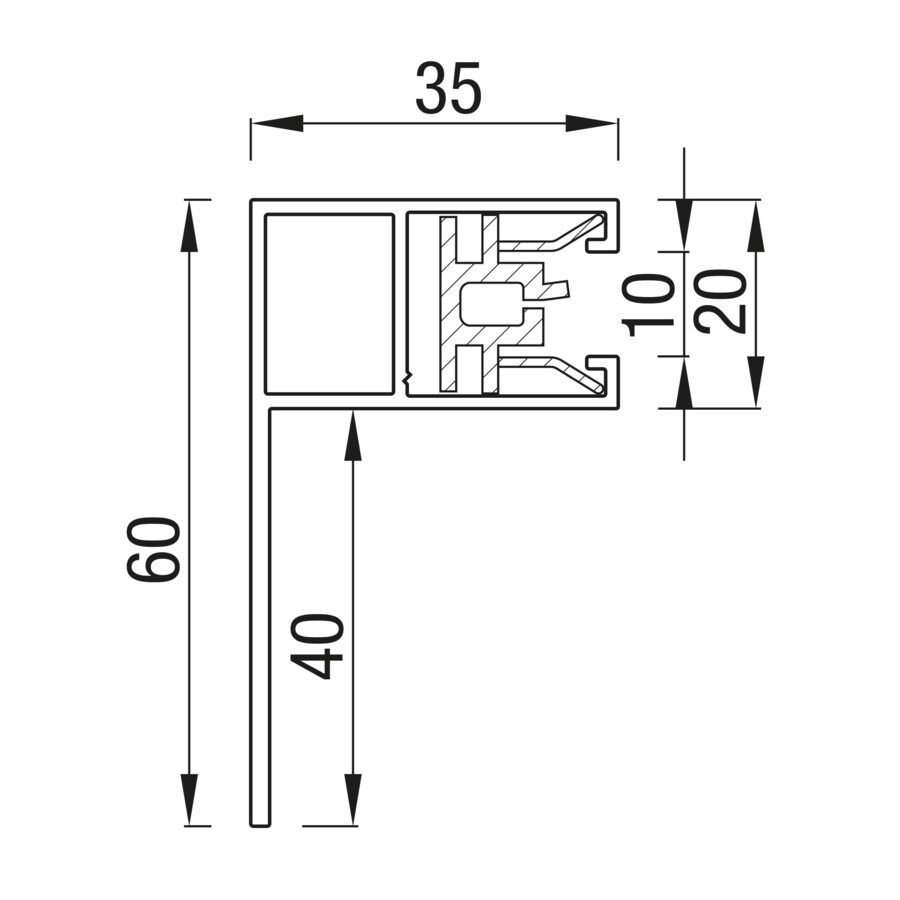

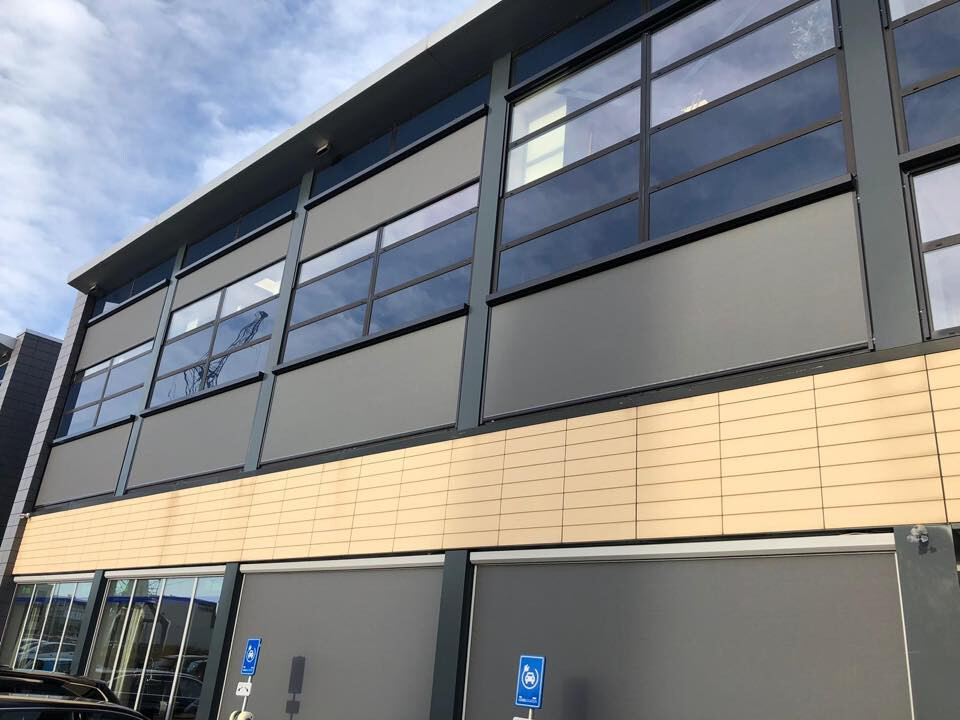

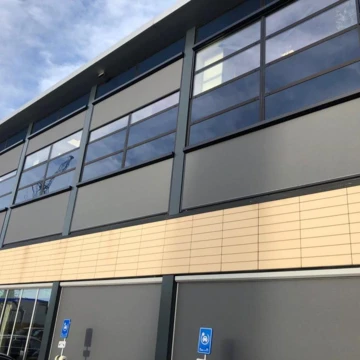

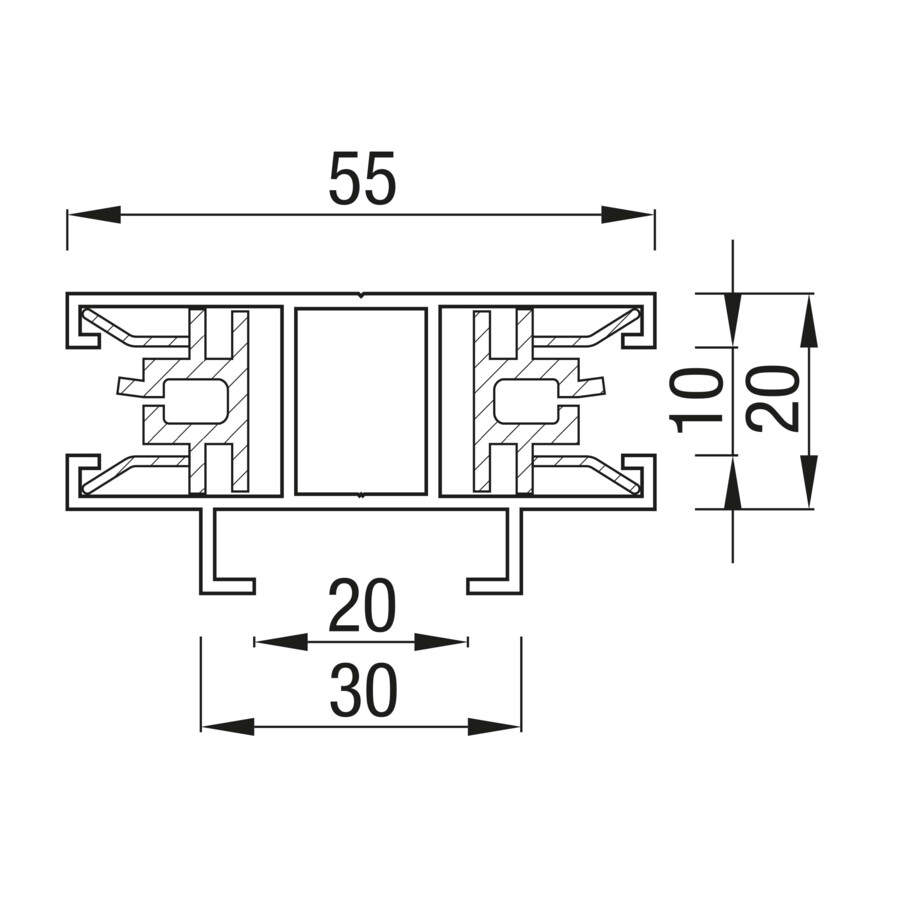

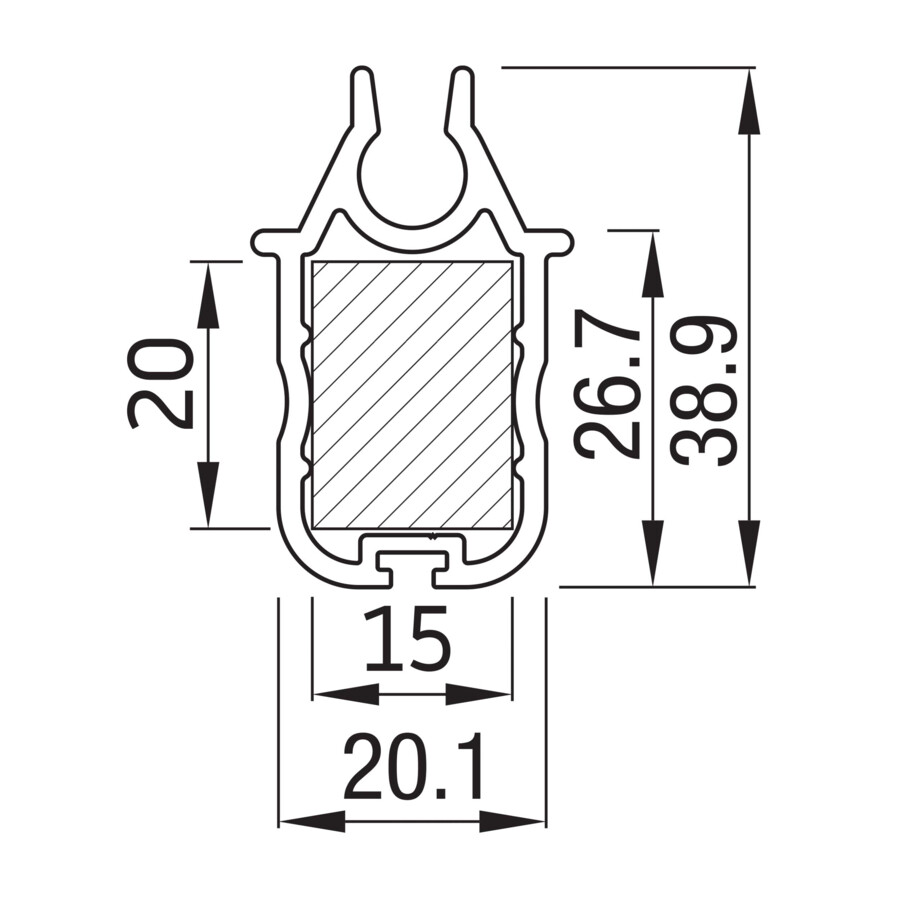

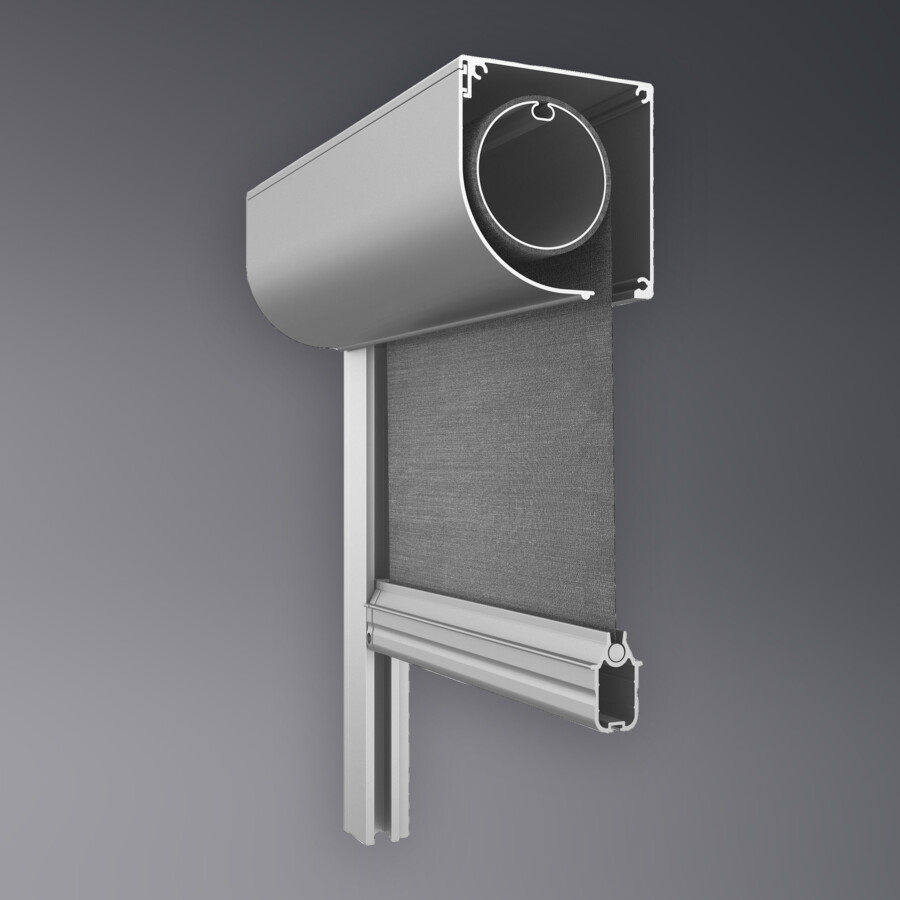

The RS Classic system is distinguished by narrow guide rails, so it works great in small window spaces. A box with side guide rails integrated with a PVC or fibreglass fabric, which is durable and resistant to weather conditions such as gusty wind, hail or rain.

Additionaly, thanks to the properties of the used fabrics, they guarantee optical comfort inside the building - on the one hand, they do not give the effect of darkening and on the other hand they suppress the penetration of intense sunlight.



The system is designed for large architectural projects - great price-quality ratio.

Advantages:

  •  reduce the operating costs of the facility
  •  insect cover
  •  protection against strong winds
  •  5 years warranty

Parameters

Dimensions

Tube Ø50

Max width 230 cm
Max height 170 cm
Max. area 3,9 m2

Parameters

Dimensions

Tube Ø63

Max width 300 cm
Max height 200 cm
Max. area 6,0 m2

Parameters

Dimensions

Tube Ø63

Max width 300 cm
Max height 200 cm
Max. area 6,0 m2

Parameters

Dimensions

Tube Ø63

Max width 300 cm
Max height 200 cm
Max. area 6,0 m2

Parameters

Dimensions

Tube Ø63

Max width 350 cm
Max height 280 cm
Max. area 7,9 m2

Parameters

Dimensions

Tube Ø63

Max width 350 cm
Max height 280 cm
Max. area 7,9 m2

Parameters

Dimensions

Tube Ø63

Max width 350 cm
Max height 250 cm
Max. area 7,9 m2

Parameters

Dimensions

Tube Ø78

Max width 450 cm
Max height 350 cm
Max. area 14,0 m2

Parameters

Dimensions

Tube Ø78

Max width 450 cm
Max height 350 cm
Max. area 14,0 m2

Parameters

Dimensions

Tube Ø63

Max width 350 cm
Max height 350 cm
Max. area 12,25 m2

Parameters

Dimensions

Tube Ø63

Max width 350 cm
Max height 350 cm
Max. area 12,25 m2

Parameters

Dimensions

Tube Ø78

Max width 450 cm
Max height 450 cm
Max. area 15,7 m2

Parameters

Dimensions

Tube Ø78

Max width 450 cm
Max height 450 cm
Max. area 15,7 m2

Parameters

Dimensions

Tube Ø78

Max width 450 cm
Max height 450 cm
Max. area 15,7 m2

Parameters

Dimensions

Tube Ø78

Max width 450 cm
Max height 450 cm
Max. area 15,7 m2

Colors

Standard casing colours RS Classic 75

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • RAL 9016

    Traffic White

  • RAL 9006

    White aluminium

  • C0 - natural
    (anodised)

  • RAL 7016

    Anthracite gray

  • Tiger 29/80081

    Iron Glimmer

    (Structural Finish)

  • STR 7S16
    Anthracite gray
    (Structural Finish)

Colors

Standard casing colours RS Classic 85 45°

  • RAL 9001

    Cream white

  • AL 9010

    White

  • RAL 9016

    Traffic White

  • C0 - natural
    (anodised)

  • RAL 9006

    White aluminium

  • RAL 7016

    Anthracite gray

  • Tiger 29/80081

    Iron Glimmer

    (Structural Finish)

Colors

Standard casing colours RS Classic 85 half-round

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • C0 - natural

    (anodised)

  • RAL 7016

    Anthracite gray

Colors

Standard casing colours RS Classic 85 square

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • C0 - natural

    (anodised)

  • RAL 7016

    Anthracite gray

Colors

Standard casing colours RS Classic 95 45°

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • RAL 9016

    Traffic White

  • RAL 9006

    White aluminium

  • STR 7S16
    Anthracite gray
    (Structural Finish)

  • C0 - natural
    (anodised)

  • RAL 7016

    Anthracite gray

  • Tiger 29/80081

    Iron Glimmer

    (Structural Finish)

Colors

Standard casing colours RS Classic 95 square

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • C0 - natural
    (anodised)

  • RAL 7016
    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

Colors

Standard casing colours RS Classic 95 round

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • C0 - natural
    (anodised)

  • RAL 7016

    Anthracite gray

Colors

Standard casing colours RS Classic 105 45°

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • RAL 9016

    Traffic White

  • RAL 1015

    Ivory

  • RAL 9006

    White aluminium

  • C0 - natural
    (anodised)

  • RAL 7016

    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

  • Tiger 29/80081

    Iron Glimmer (Structural Finish)

Colors

Standard casing colours RS Classic 105 square

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • CO - natural
    (anodised)

  • RAL 7016

    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

Colors

Standard casing colours RS Classic 105 bottom revision hatch

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • CO - natural
    (anodised)

  • RAL 7016

    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

Colors

Standard casing colours RS Classic 105 inverted installation

  • RAL 9001
    Cream white

  • RAL 9010
    White

  • C0 - natural
    (anodised)

  • RAL 7016
    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

Colors

Standard casing colours RS Classic 120 half-round

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • RAL 9016

    Traffic White

  • C0 - natural (anodised)

  • RAL 9006

    White aluminium

  • RAL 7016

    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

  • Tiger 29/80081

    Iron Glimmer (Structural Finish)

Colors

Standard casing colours RS Classic 120 dicht

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • RAL 9016

    Traffic White

  • C0 - natural (anodised)

  • RAL 9006

    White aluminium

  • RAL 7016

    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

  • Tiger 29/80081

    Iron Glimmer

    (Structural Finish)

Colors

Standard casing colours RS Classic 125 45°

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • RAL 9016

    Traffic White

  • C0 - natural (anodised)

  • RAL 9006

    White aluminium

  • RAL 7016

    Anthracite gray

  • STR 7S16
    Anthracite gray
    (Structural Finish)

  • Tiger 29/80081

    Iron Glimmer

    (Structural Finish)

Colors

Standard casing colours RS Classic 125 square

  • RAL 9001

    Cream white

  • RAL 9010

    White

  • C0 - natural (anodised)

  • RAL 7016

    Anthracite gray
