Rolling grilles
The system is intended for use in shopping centers and modern stores.
Thanks to the rolling grille, shop windows are also visible at night. Certified burglary protection allows you to effectively use grates to secure offices and banks, cafes and restaurants.
Rolled grilles are made of extruded aluminum profiles with increased strength.
The main advantages of rolling grilles:
- the option of installing rolling grilles on openings up to 7 m wide and up to 21 m2
- high level of burglary protection
- shop windows and shopping malls 24/7, even if the store is closed
- the possibility of lifting and lowering the grille at any time
- a wide selection of color solutions
- high corrosion resistance, resistance to precipitation and UV radiation
Parameters
profile height - 84 mm
profile thickness - 19 mm
max. width - 7000 mm
max. area - 21 m²
number of slats in 1 m height - 12 pieces
weight p/m² - 7,1 kg
Technical specifications

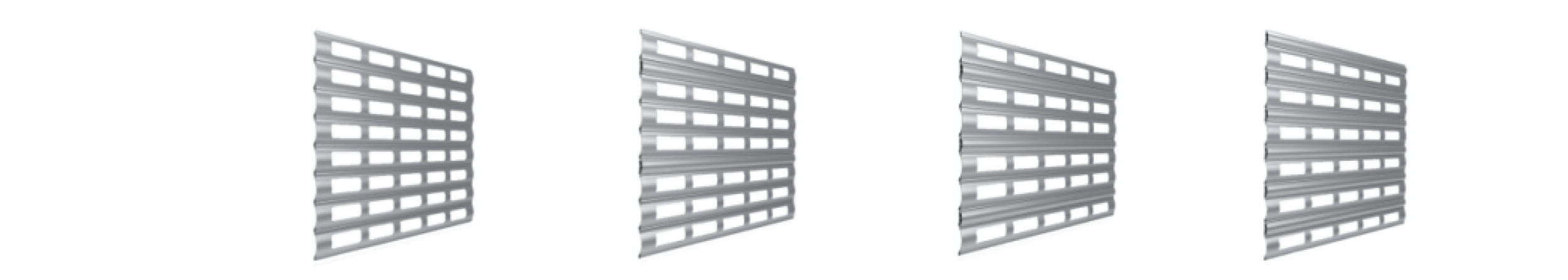

Variants

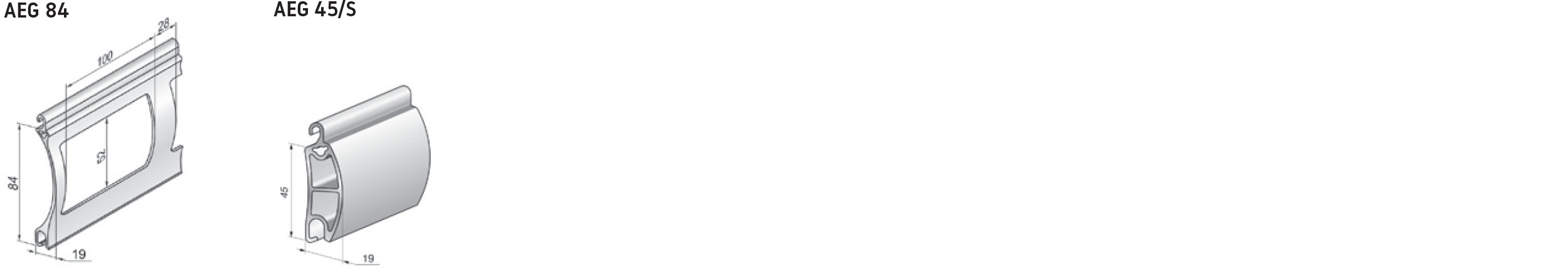

| AEG 84 | 1 | 3+1 | 2+1 | 1+1 |
| Profile | AEG 84 . | 3 AEG 84 + 1 AEG 45/S | 2 AEG 84 + 1 AEG 45/S | 1 AEG 84 + 1 AEG 45/S |
| Max. width | 550 cm | 600 cm | 650 cm | 700 cm |
| Max. area | 16,5 m² | 18 m² | 19,5 m² | 21 m² |
Guiderails
GR 90x34E
Parameters
profile height - 56 mm
profile thickness - 13.5 mm
max. width - 4500 mm
max. area - 13,5 m²
number of slats in 1 m height - 17,8 pieces
weight p/m² - 6,2 kg
Technical specifications
Variants

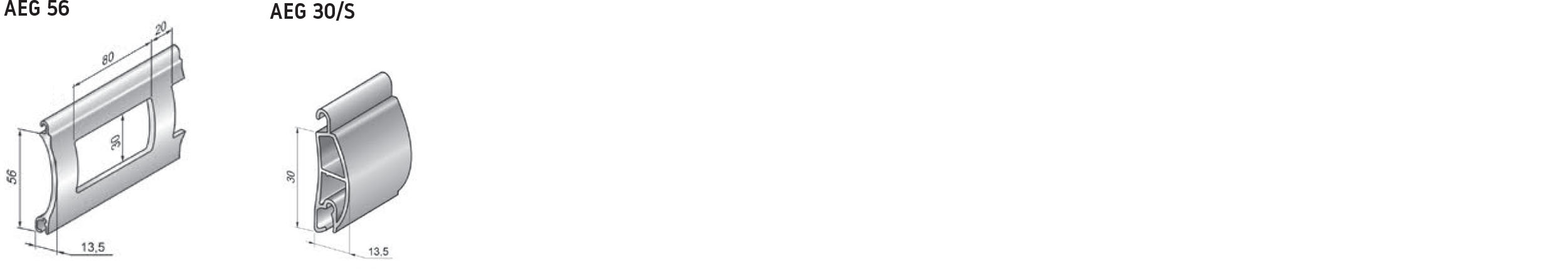

| AEG 56 | 1 | 3+1 | 2+1 | 1+1 |
| Profile | AEG 56 . | 3 AEG 56 + 1 AEG 30/S | 2 AEG56 + 1 AEG 30/S | 1 AEG56 + 1 AEG 30/S |
| Max. width | 300 cm | 350 cm | 400 cm | 450 cm |
| Max. area | 7,5 m² | 10,5 m² | 12 m² | 13,5 m² |
Guiderails

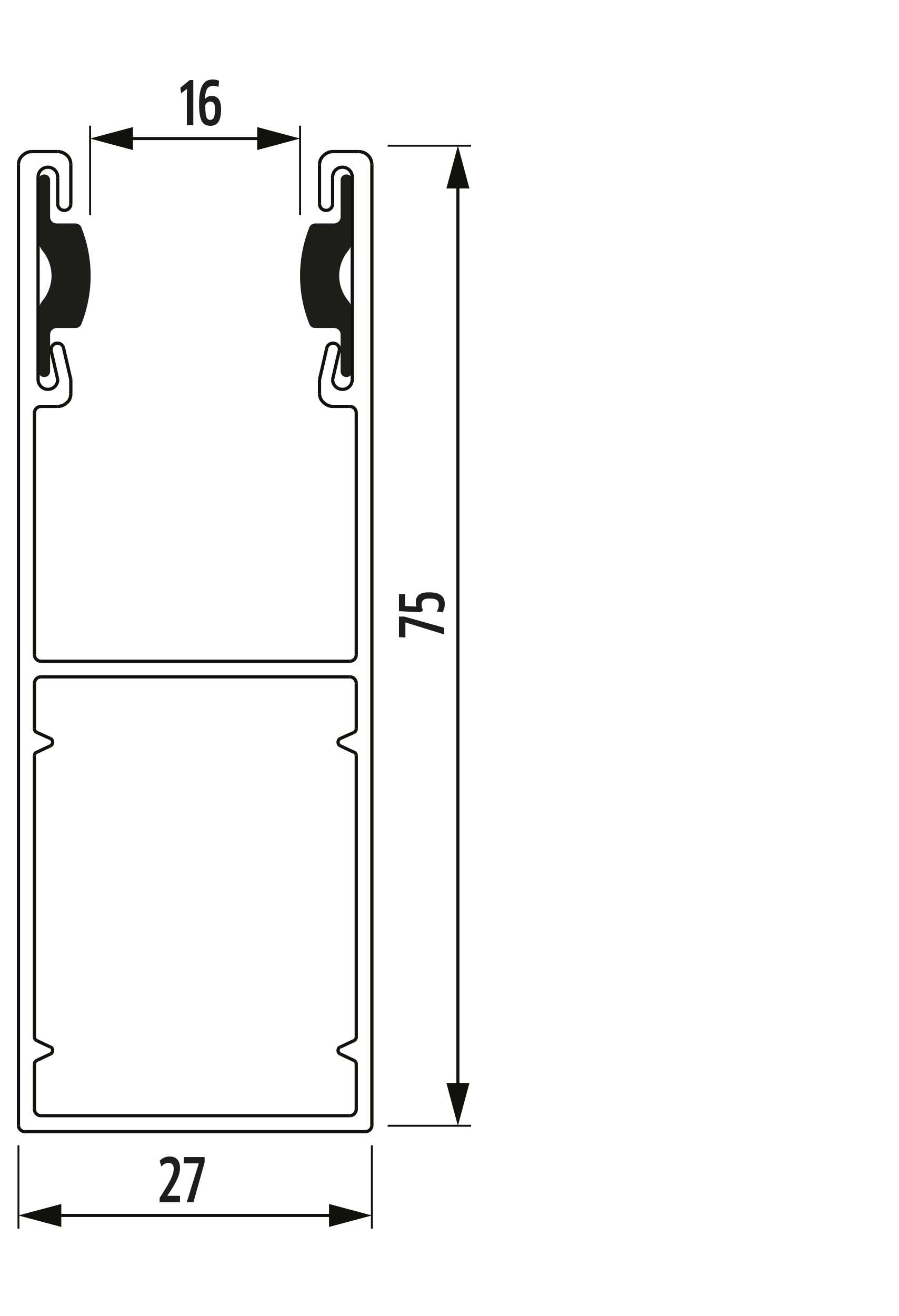

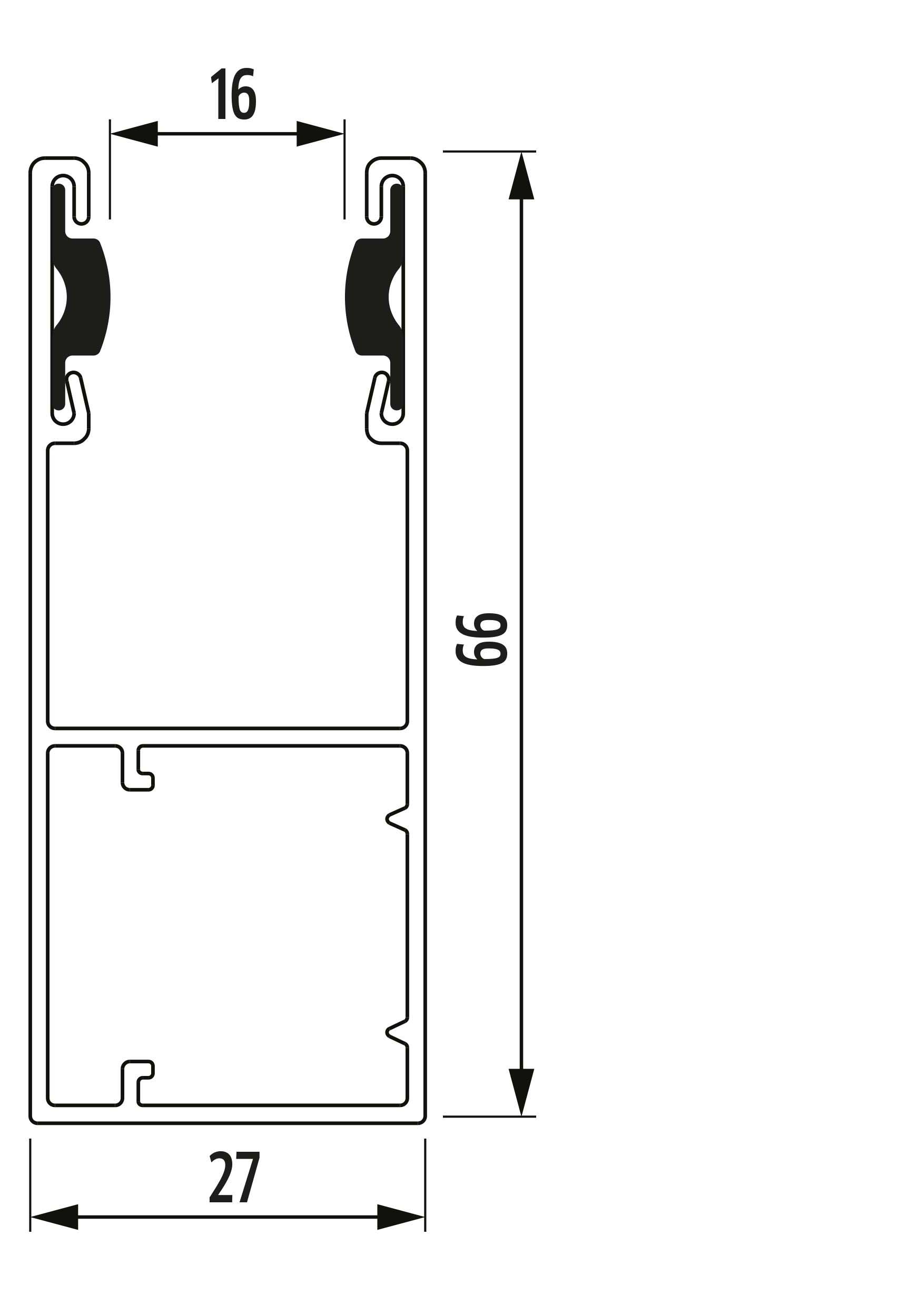

GR 66x27E i GR 75x27E
