Pergola V 188 LUX
-

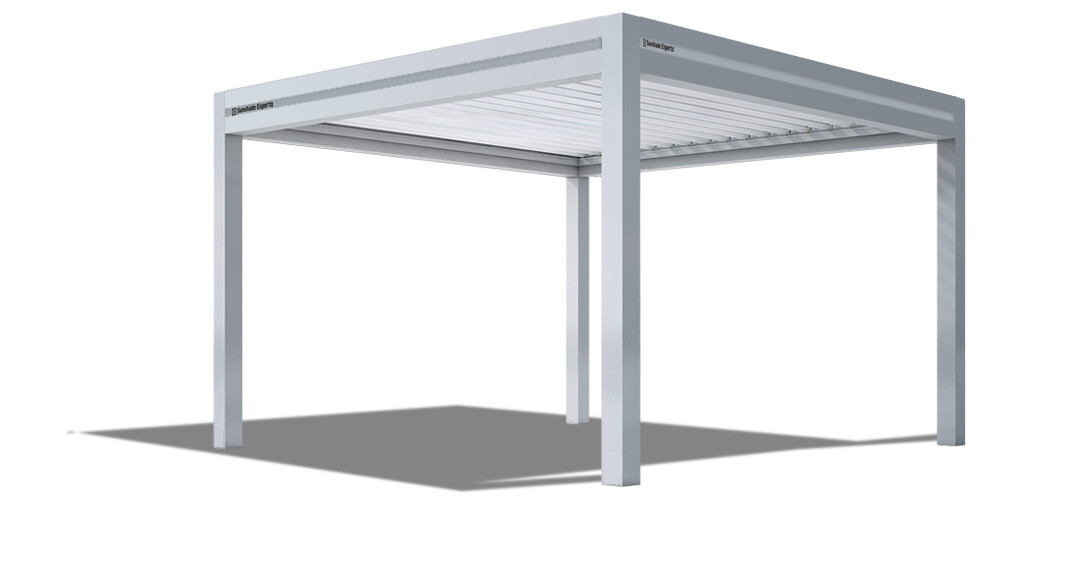

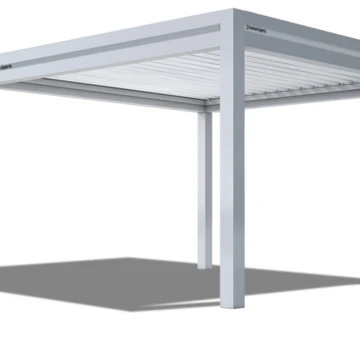

V188 LUX Freestanding -
V188 LUX Boundary - lammels paralel to the wall -
V188 LUX Boundary - lammels paralel to the wall - 2 modules -
V188 LUX Boundary - lammels perpendicular to the wall -
V188 LUX Boundary - lammels perpendicular to the wall - 2 modules -
V188 LUX Boundary Pergola - based on 2 walls -
V188 LUX Boundary - based on 2 walls - 2 modules

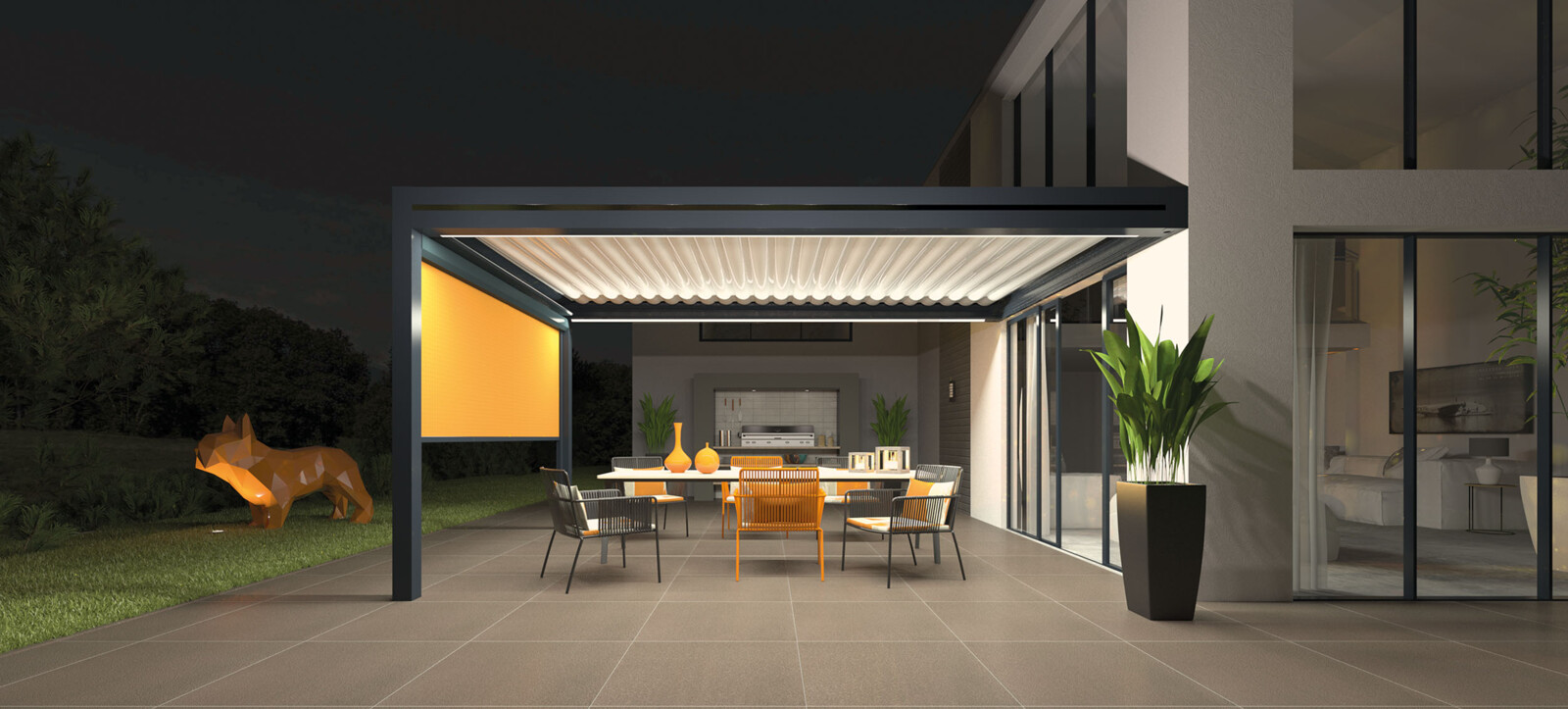

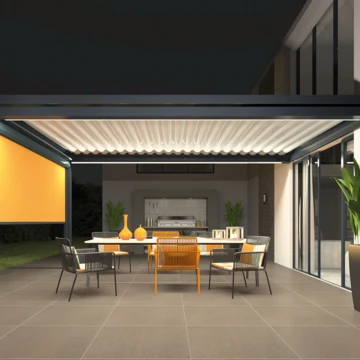

A unique model of bioclimatic pergola, characterized by integrated screen / zip vertical sun visors.
The pergola posts have integrated guides. The upper structure hides the screen fabric rolling system, as invisible as the guide rails.
Impressive maximum dimensions reaching up to 7.0 x 7.0 m, flat roof lammels equipped with LED lighting, water drainage and full automation place this product among luxury items that will change the quality of your rest in the garden or on the terrace.
.
Parameters
Lamellen standard
| Max dimension Side A - along the lammel | 4000 mm |
| Max dimension Side B | 6950 mm |
| Max area | 24 m2 |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
Lamellen reinforced
| Max dimension Side A - along the lammel | 4000 - 5000 mm |
| Max dimension Side B | 5771 mm |
| Max area | 24 m2 |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
Parameters
| Max dimension Side A - along the lammel | 5000 mm |
| Max dimension Side B | 7008 mm |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
Parameters
| Max dimension Side A - along the lammel | 5250 - 7000 mm |
| Max dimension Side B | 7008 mm |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
Parameters
| Max dimension Side A - along the lammel | 5000 mm |
| Max dimension Side B | 6950 mm |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
Parameters
| Max dimension Side A - along the lammel | 4000 mm |
| Dimension Side B | 7285 - 13966 mm |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
Parameters
| Max dimension Side A - along the lammel | 5000 mm |
| Max dimension Side B | 7008 mm |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
Parameters
| Max dimension Side A - along the lammel | 5250 - 7000 mm |
| Max dimension Side B | 7008 mm |
| Height to the beam | 2600 - 3000 mm |
| Support dimension | 188x188 mm |
General information

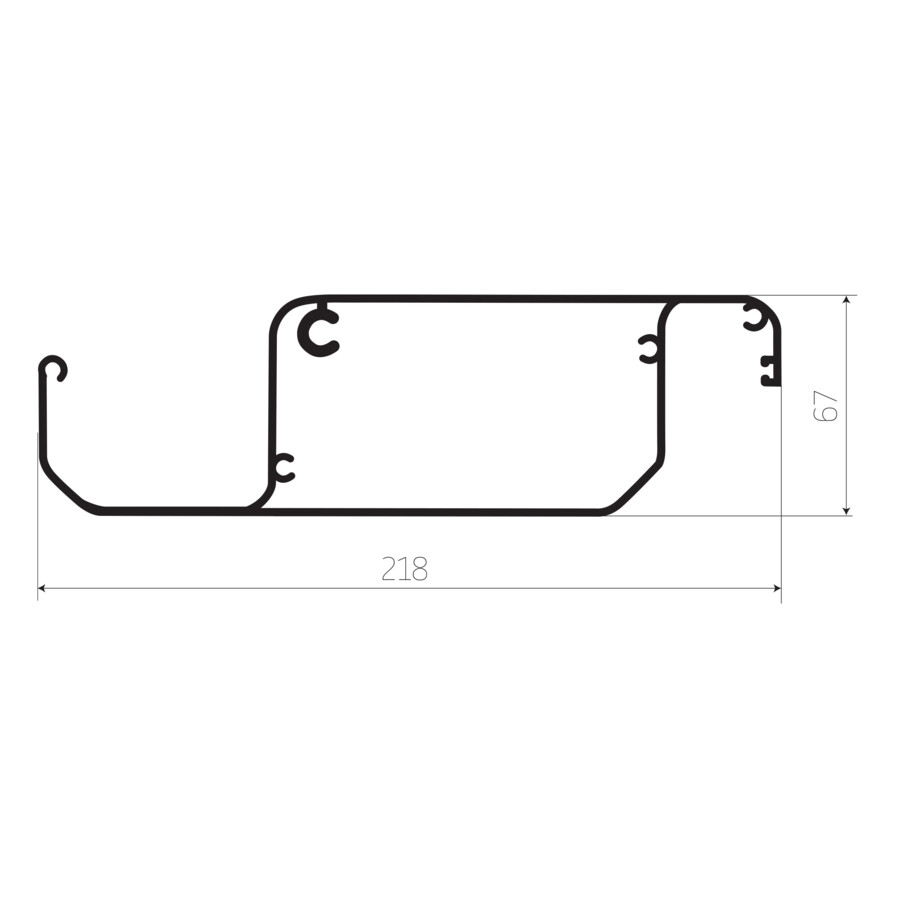

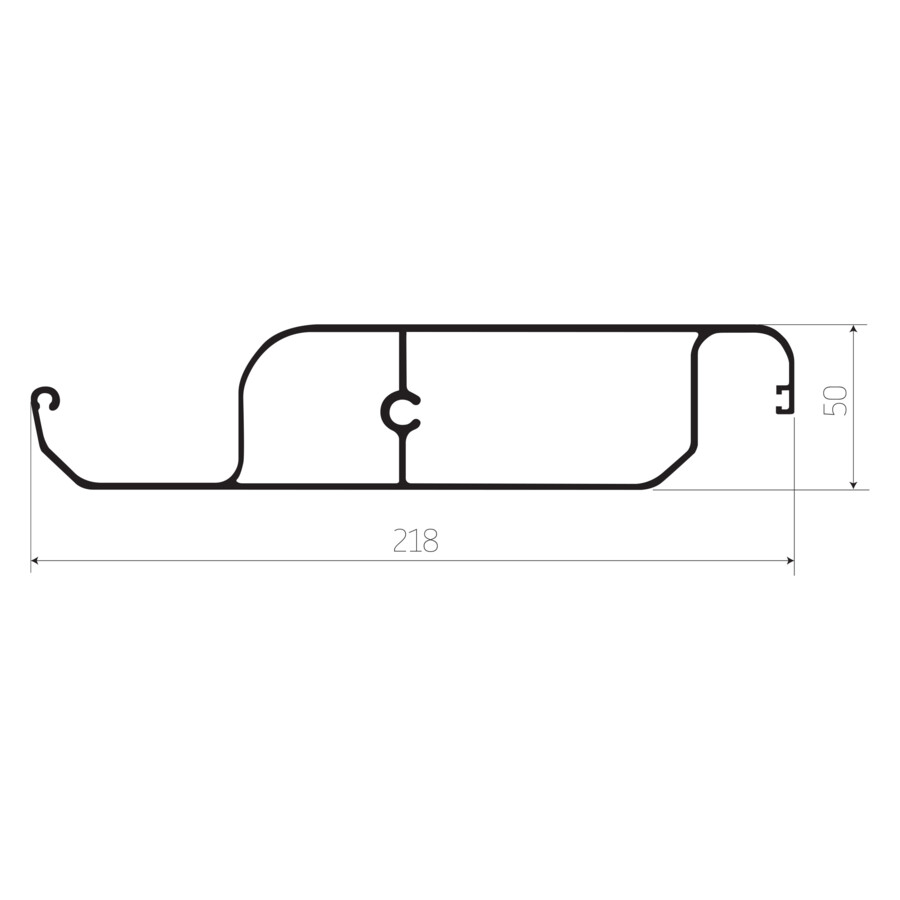

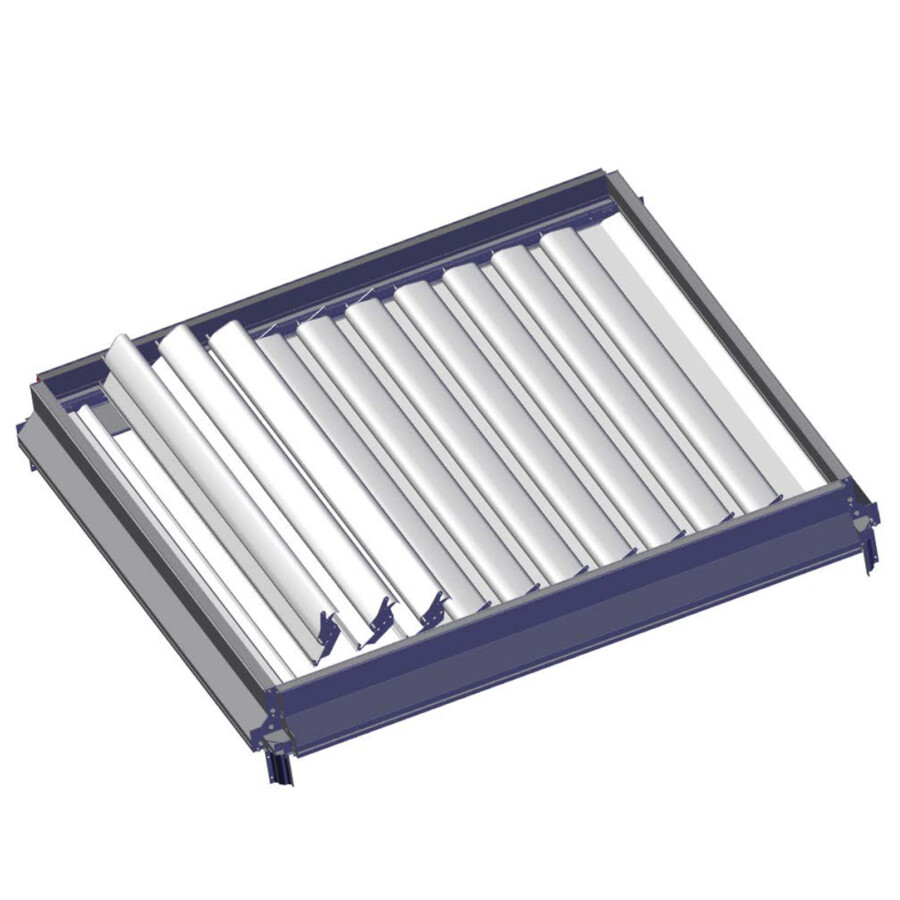

Lamellen
Lamellen
Opening

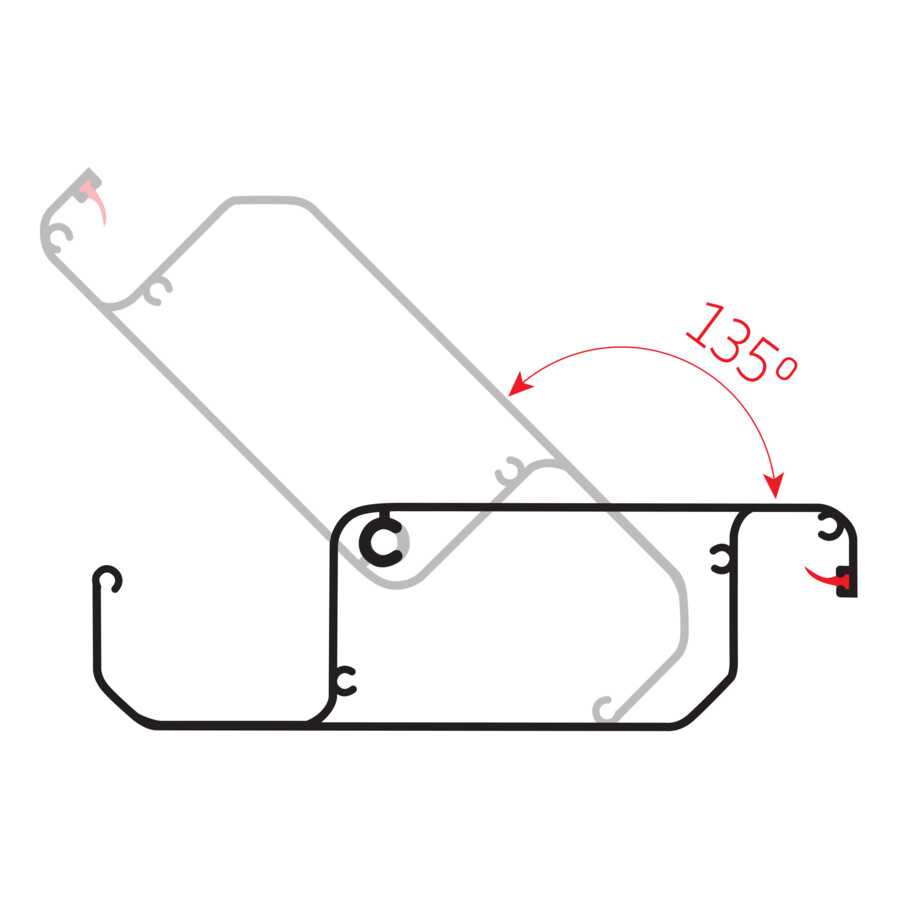

opening amplitude of the lamellas
Standard

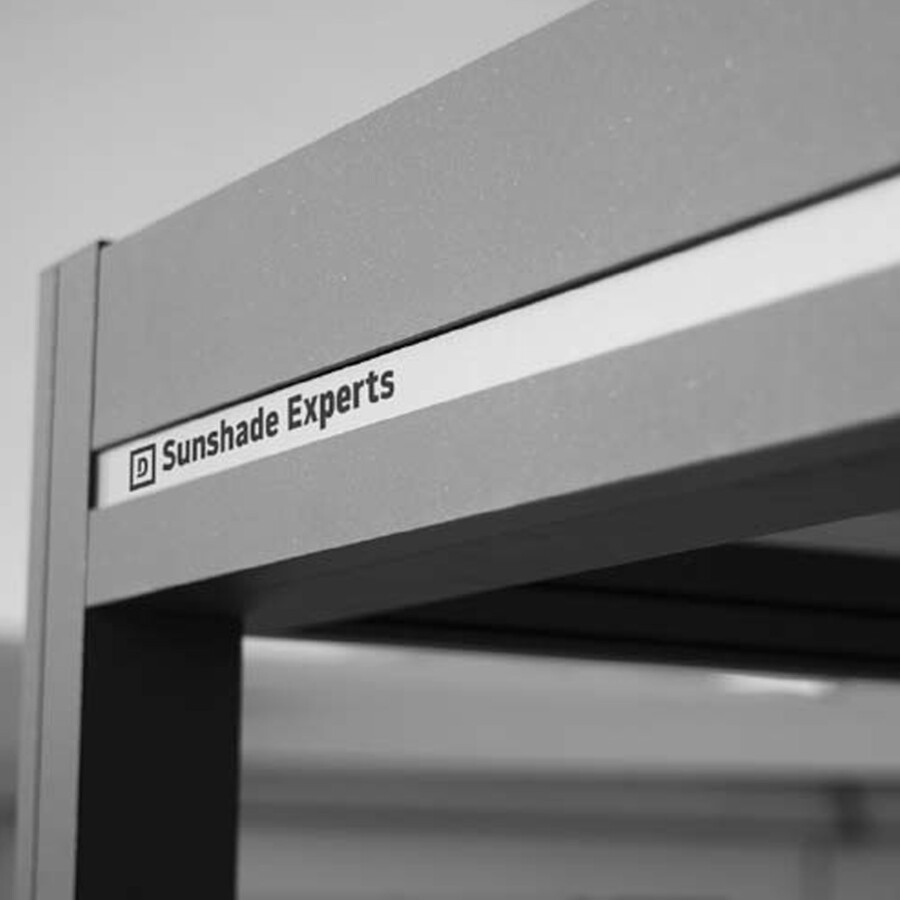

Decorative strip with brushed steel effect

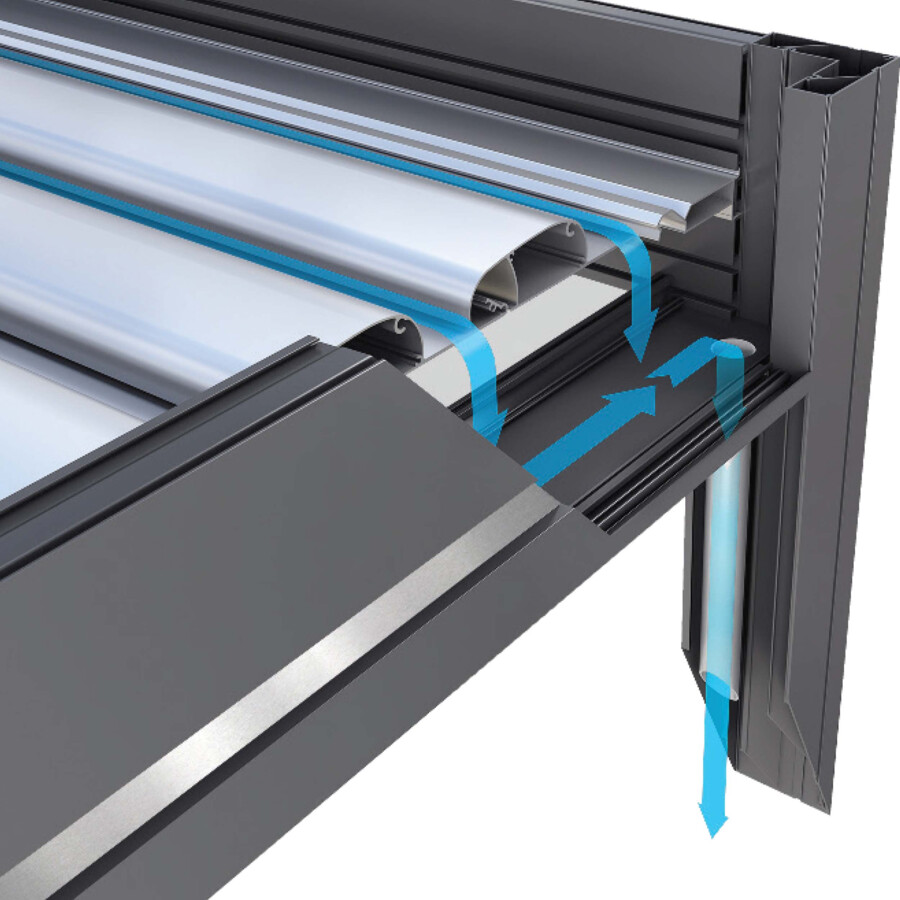

Water outflow in lammels

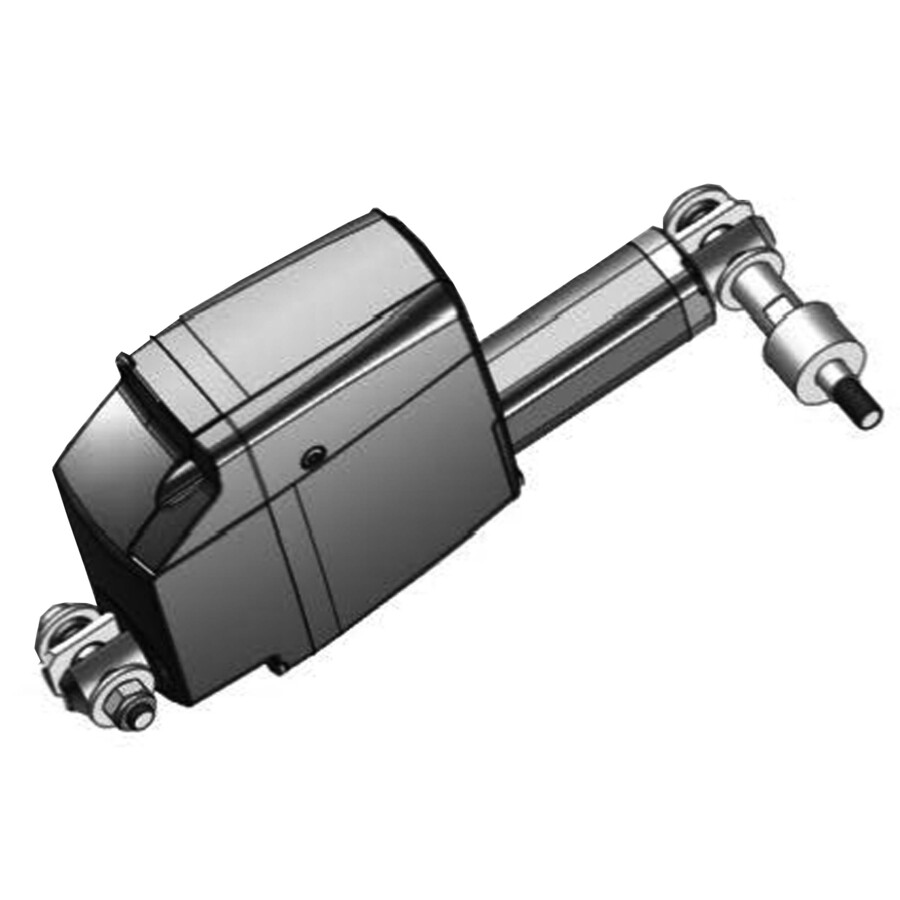

One 85W motor with actuators

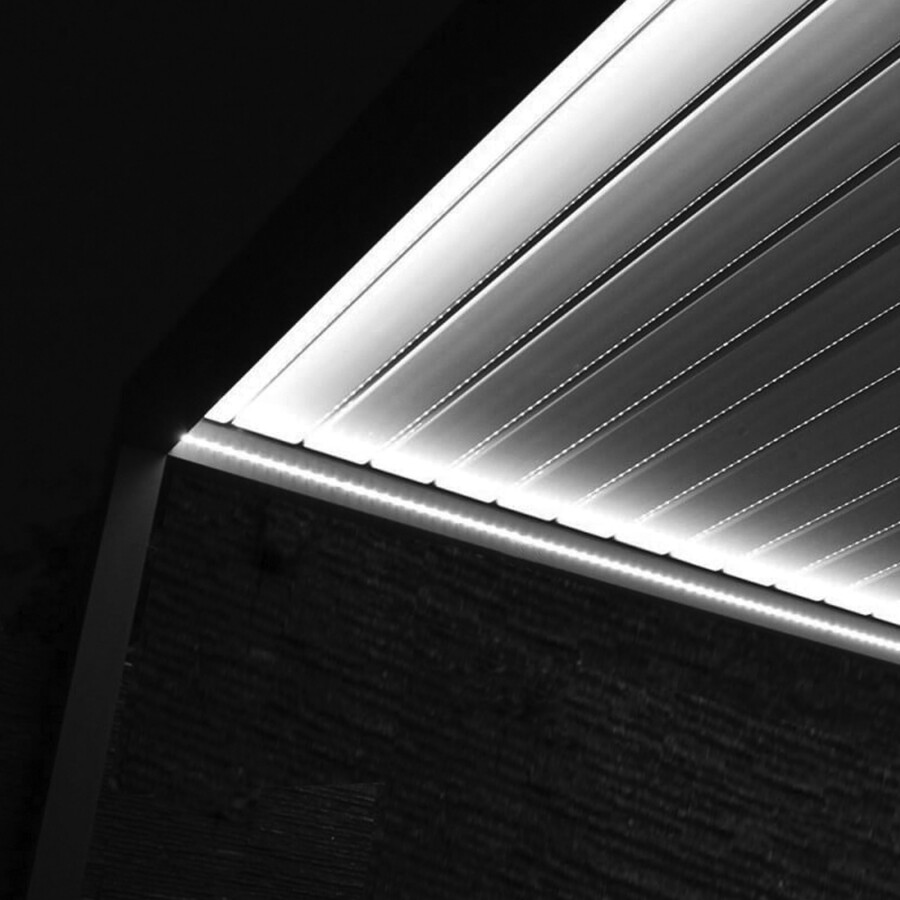

Lighting - optional

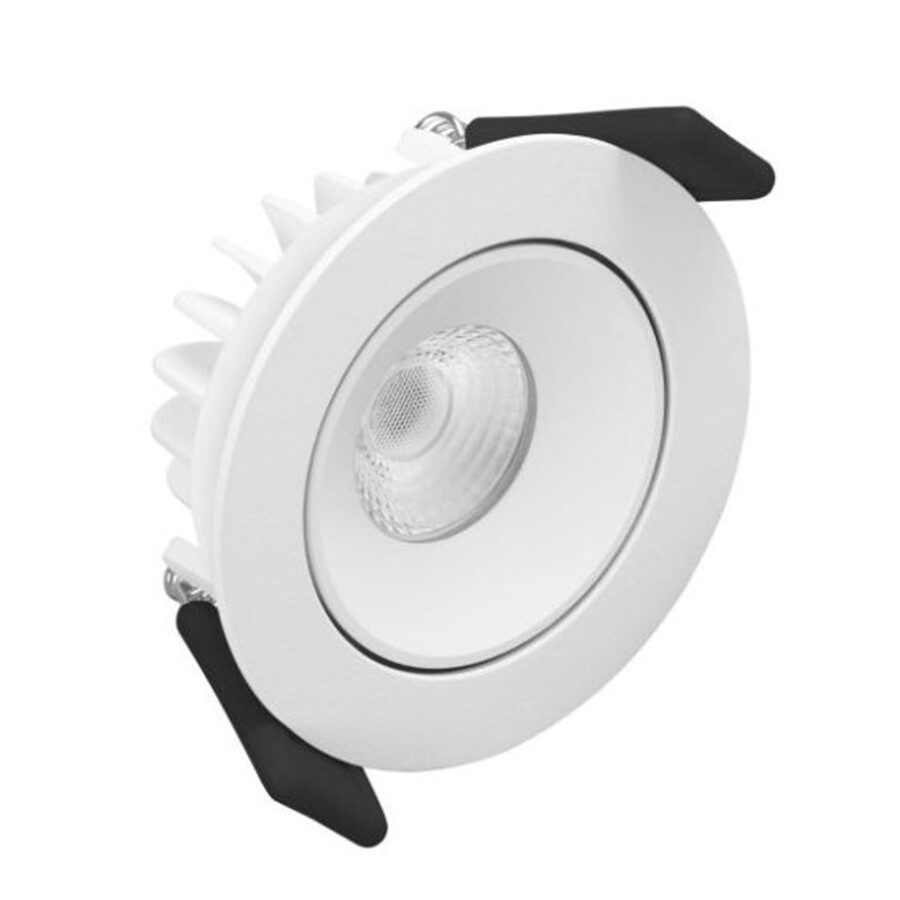

Spot LED
Moody lightings

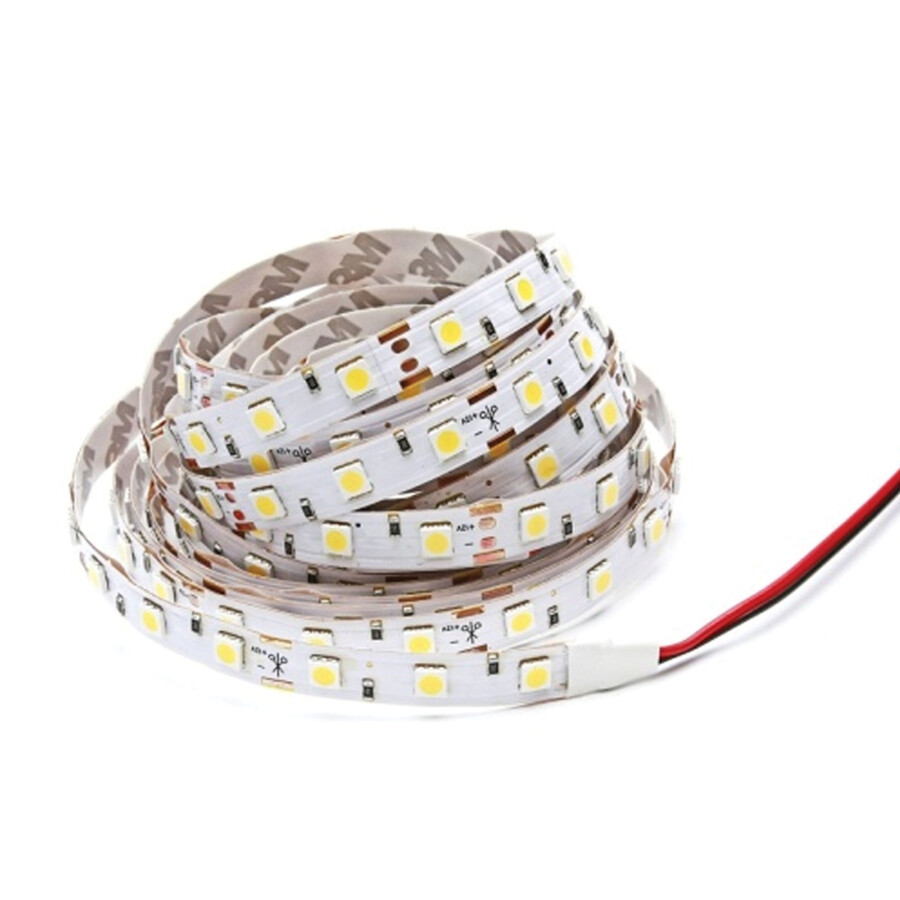

LED Tape's
Standard colors:
-
Beams and supports:
RAL 7016 Structural colorAnthracite
-
Lammels:
RAL 9016 Mat
White
Method of operation

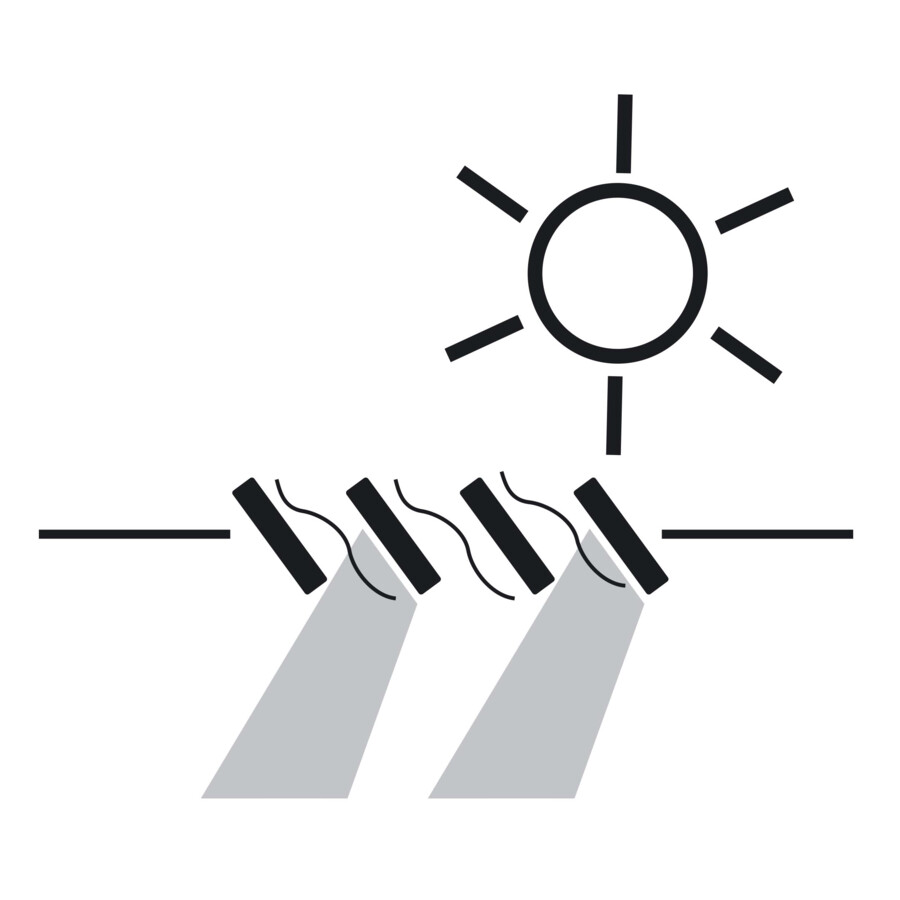

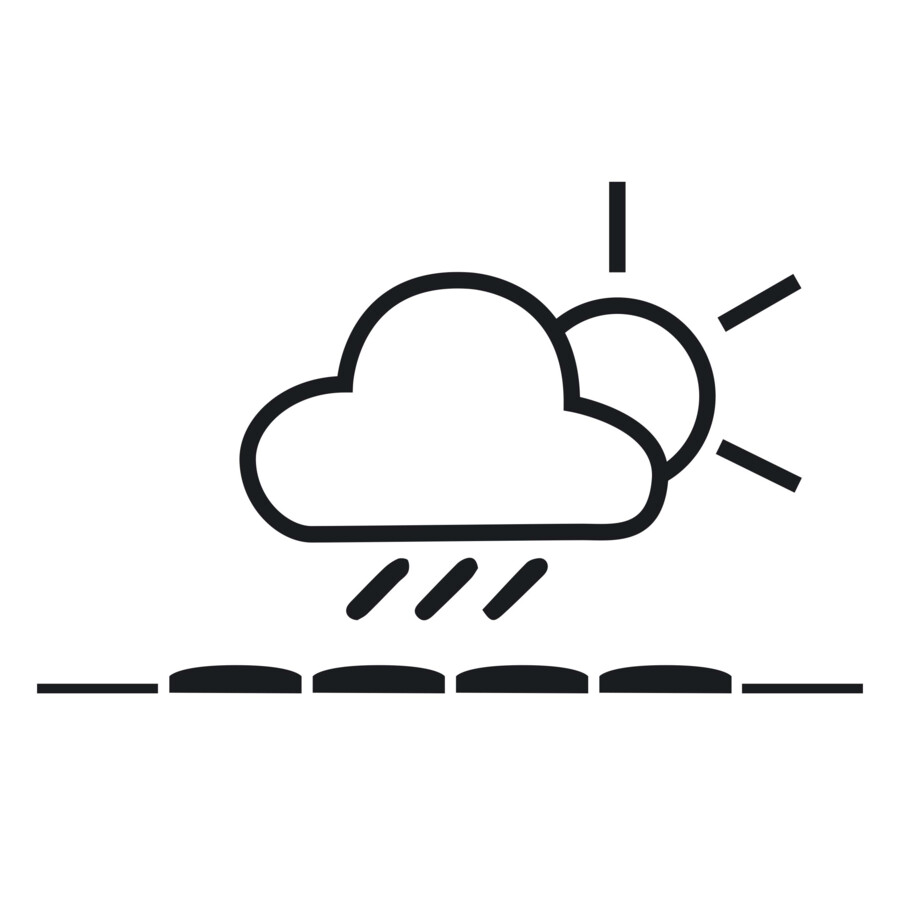

Lammels closed

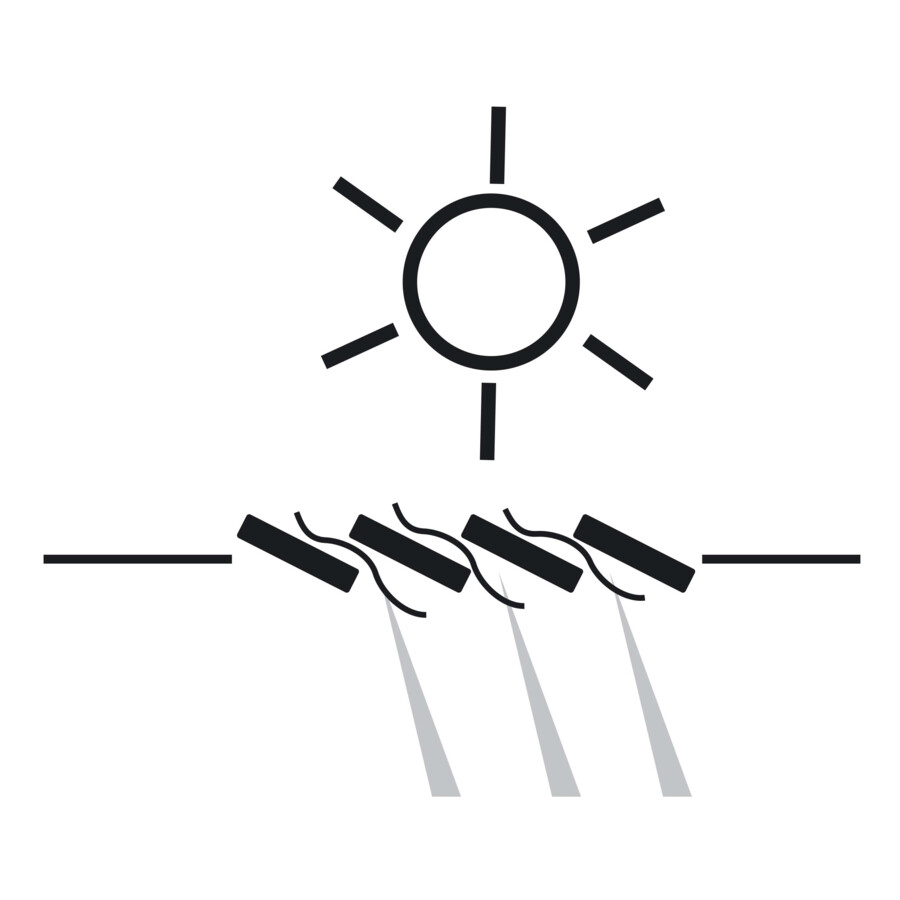

Lammels 45° opened
Lammels 125° opened
Lammels 90° opened

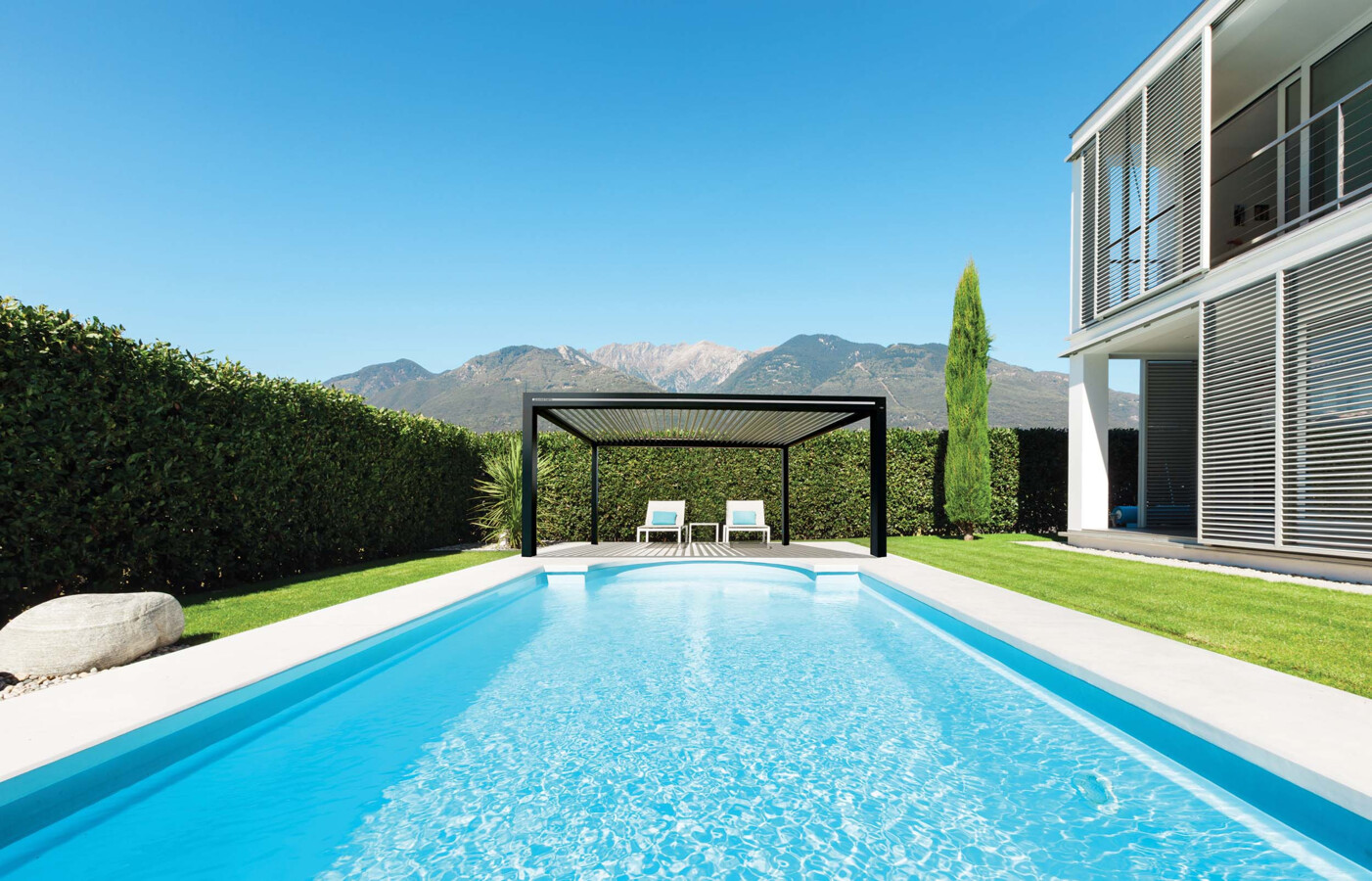

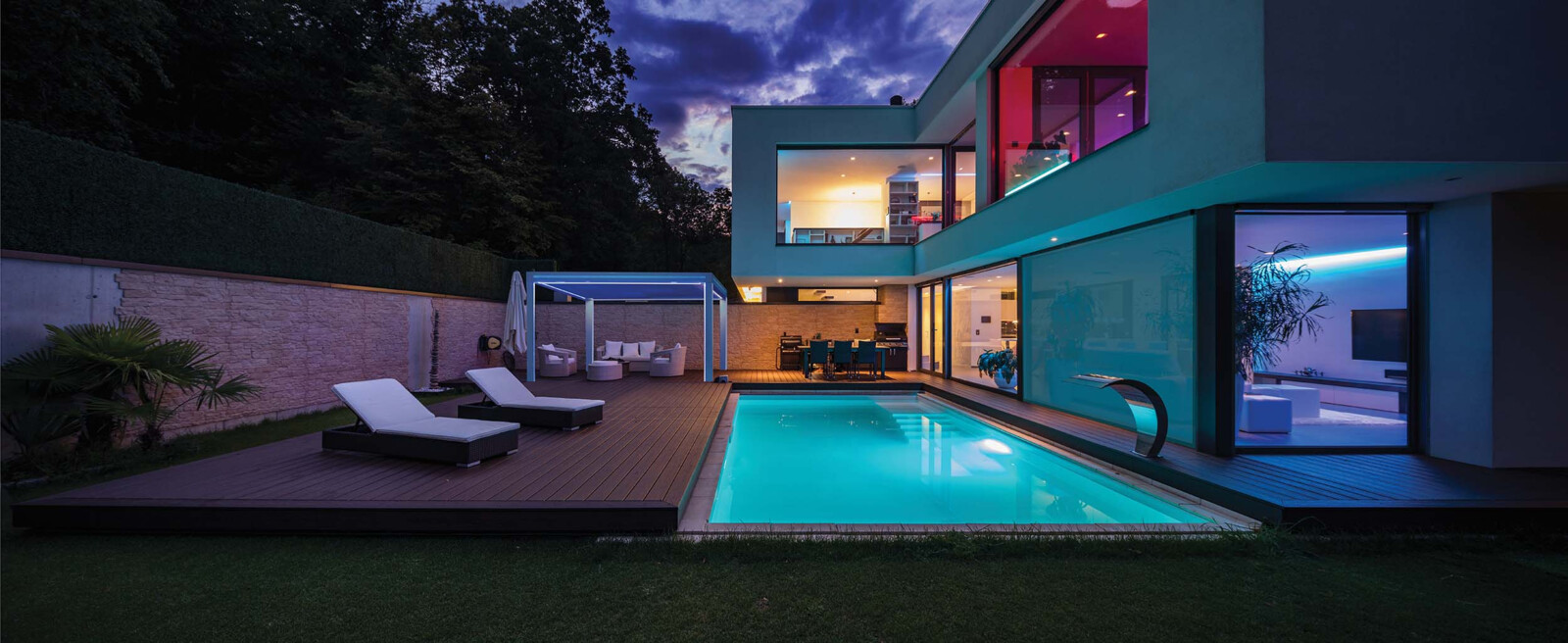

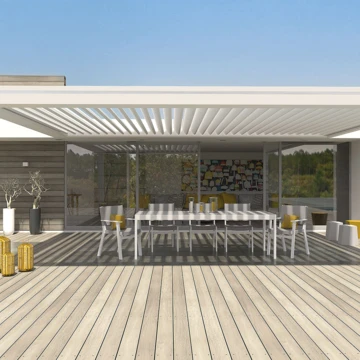

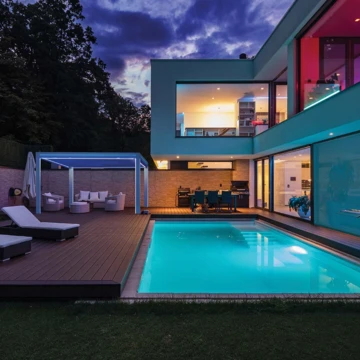

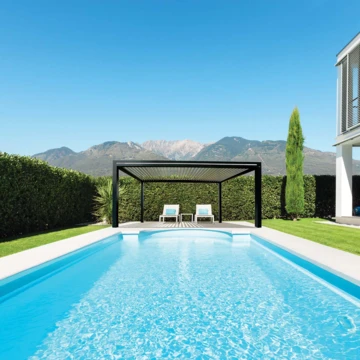

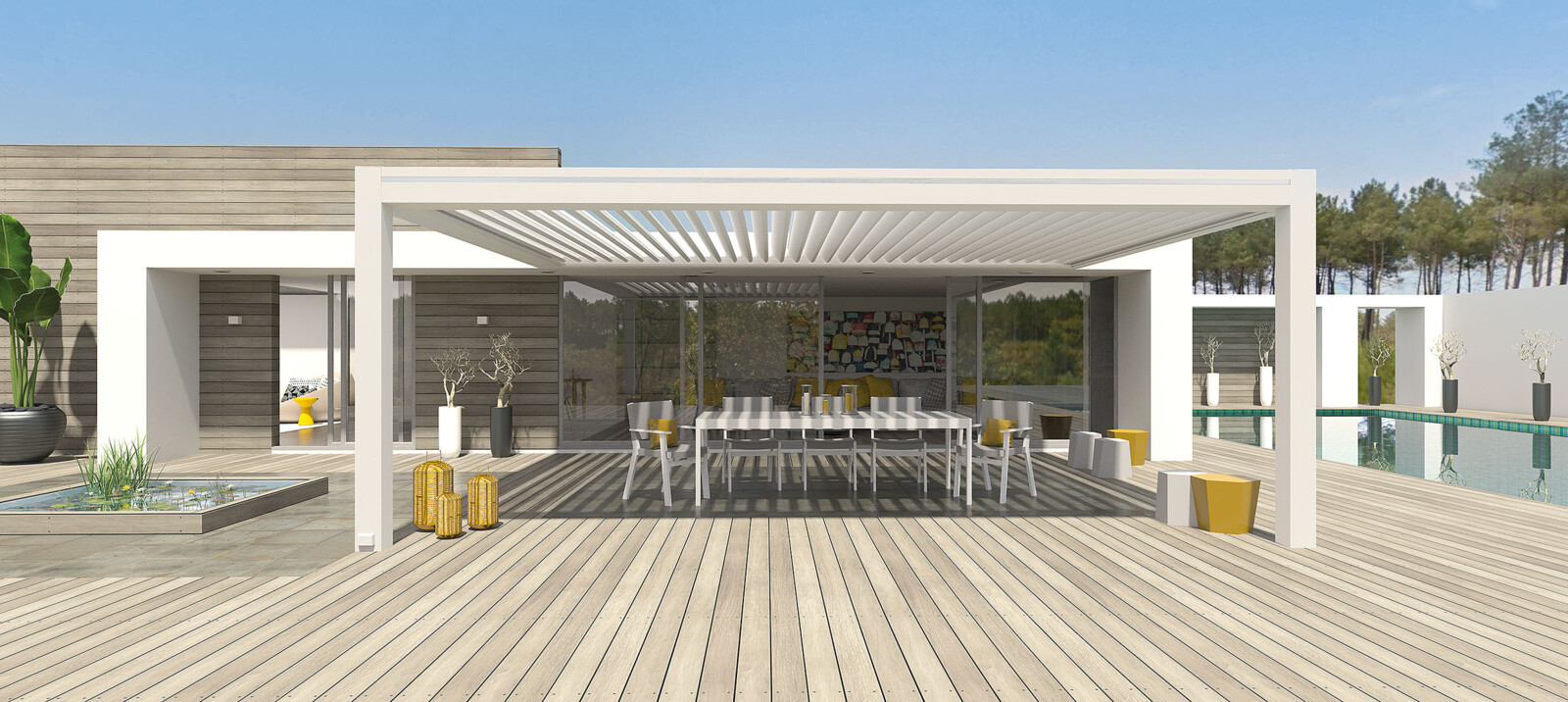

Pergola presentation
