Pergola V 150
-
V150 Freestanding -
V150 Boundary - lammels paralel to the wall -
V150 Boundary - lammels paralel to the wall - 2 modules -
V150 Boundary - lammels perpendicular to the wall -
V150 Boundary - lammels perpendicular to the wall - 2 modules -
V150 Boundary Pergola - based on 2 walls -
V150 Boundary - based on 2 walls - 2 modules
Impressive maximum dimensions reaching up to 6.0 x 6.0 m, flat roof lammels equipped with LED lighting, water drainage and full automation place this product among luxury items that will change the quality of your rest in the garden or on the terrace.
Parameters
| Max dimension Side A - along the lammel | 4000 mm |
| Max dimension Side B | 6086 mm |
| Height to the beam | 2600 - 2800 mm |
| Support dimension | 150x150 mm |
Parameters
| Max dimension Side A - along the lammel | 4000 mm |
| Max dimension Side B | 6036 mm |
| Height to the beam | 2600 - 2800 mm |
| Support dimension | 150x150 mm |
Parameters
| Max dimension Side A - along the lammel | 4250 - 6000 mm |
| Max dimension Side B | 6036 mm |
| Height to the beam | 2600 - 2800 mm |
| Support dimension | 150x150 mm |
Parameters
| Max dimension Side A - along the lammel | 4000 mm |
| Max dimension Side B | 6086 mm |
| Height to the beam | 2600 - 2800 mm |
| Support dimension | 150x150 mm |
Parameters
| Max dimension Side A - along the lammel | 4000 mm |
| Dimension Side B | 7306 - 12022 mm |
| Height to the beam | 2600 - 2800 mm |
| Support dimension | 150x150 mm |
Parameters
| Max dimension Side A - along the lammel | 4000 mm |
| Max dimension Side B | 6036 mm |
| Height to the beam | 2600 - 2800 mm |
| Support dimension | 150x150 mm |
Parameters
| Max dimension Side A - along the lammel | 4250 - 6000 mm |
| Max dimension Side B | 6036 mm |
| Height to the beam | 2600 - 2800 mm |
| Support dimension | 150x150 mm |
General information

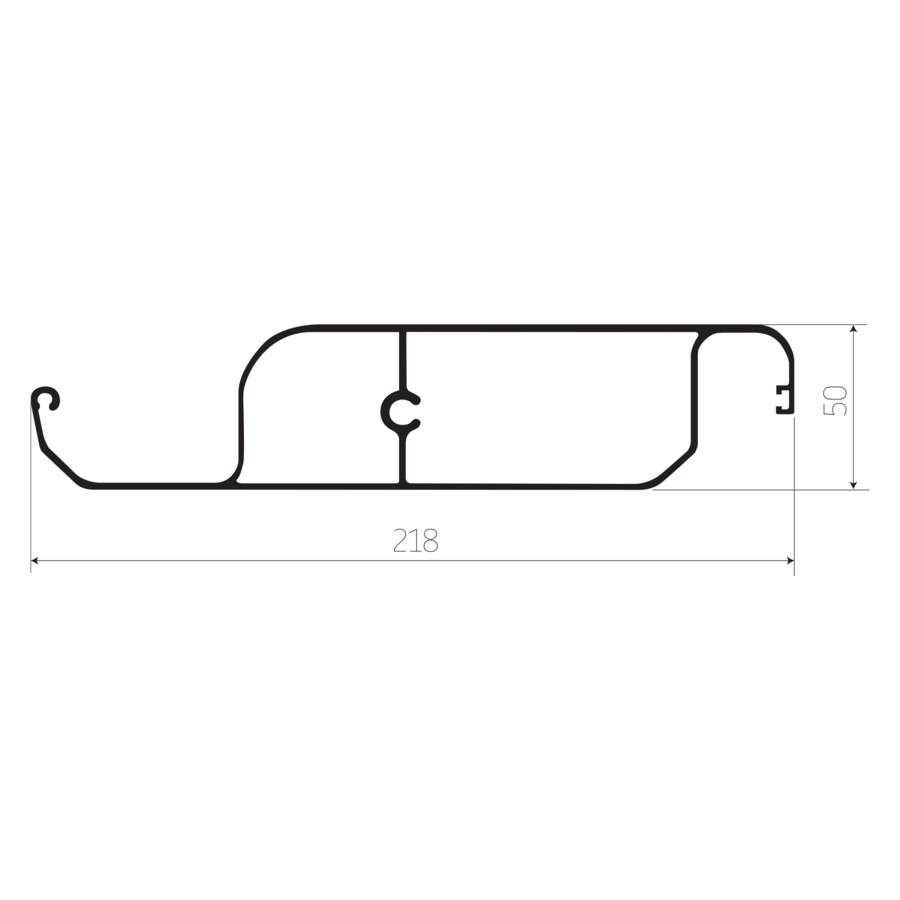

Lamellen
Opening

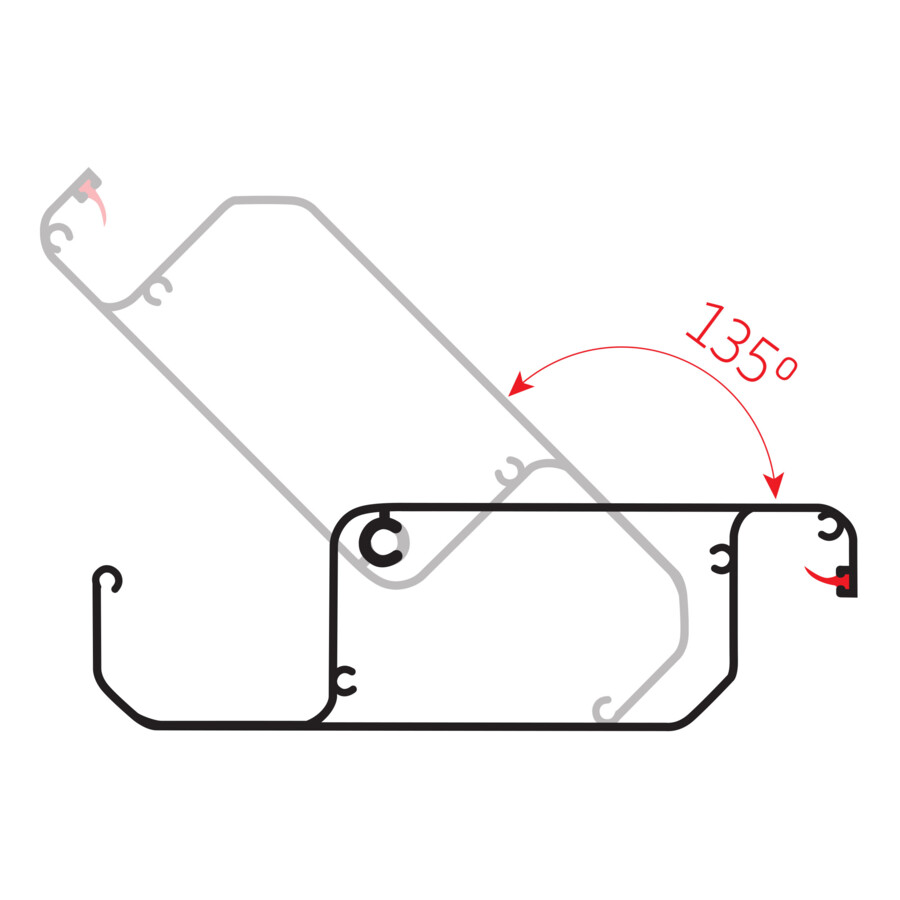

opening amplitude of the lamellas
Standard

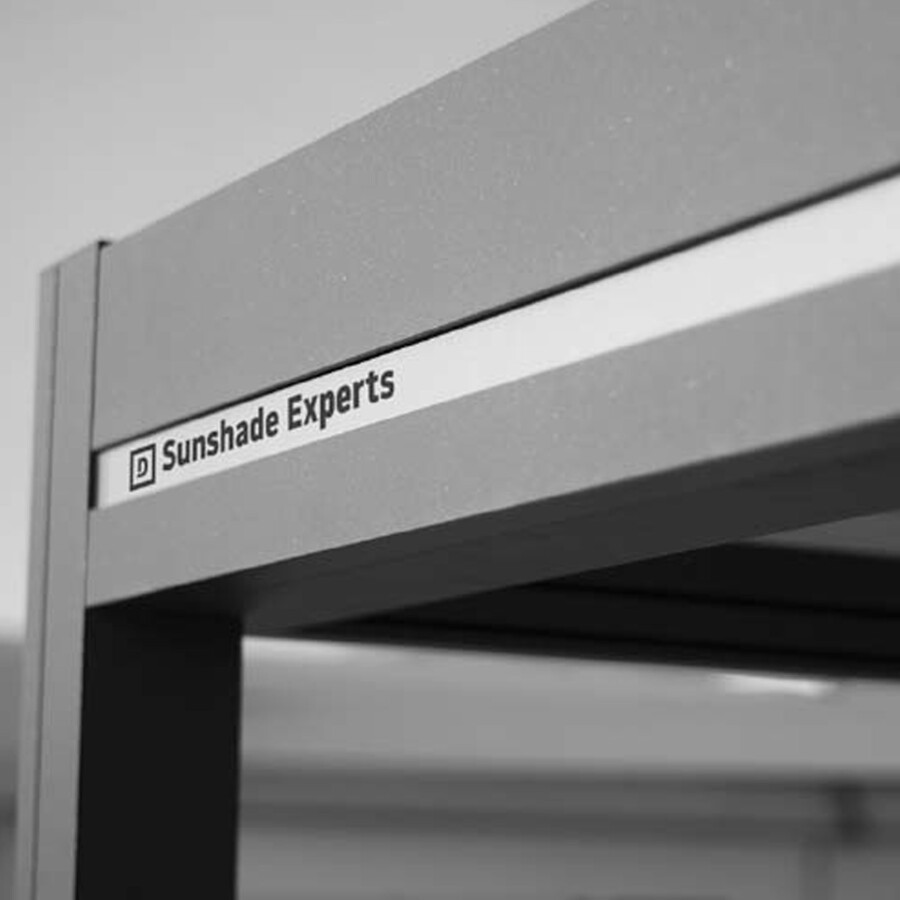

Decorative strip with brushed steel effect
Lighting - optional
Moody lightings

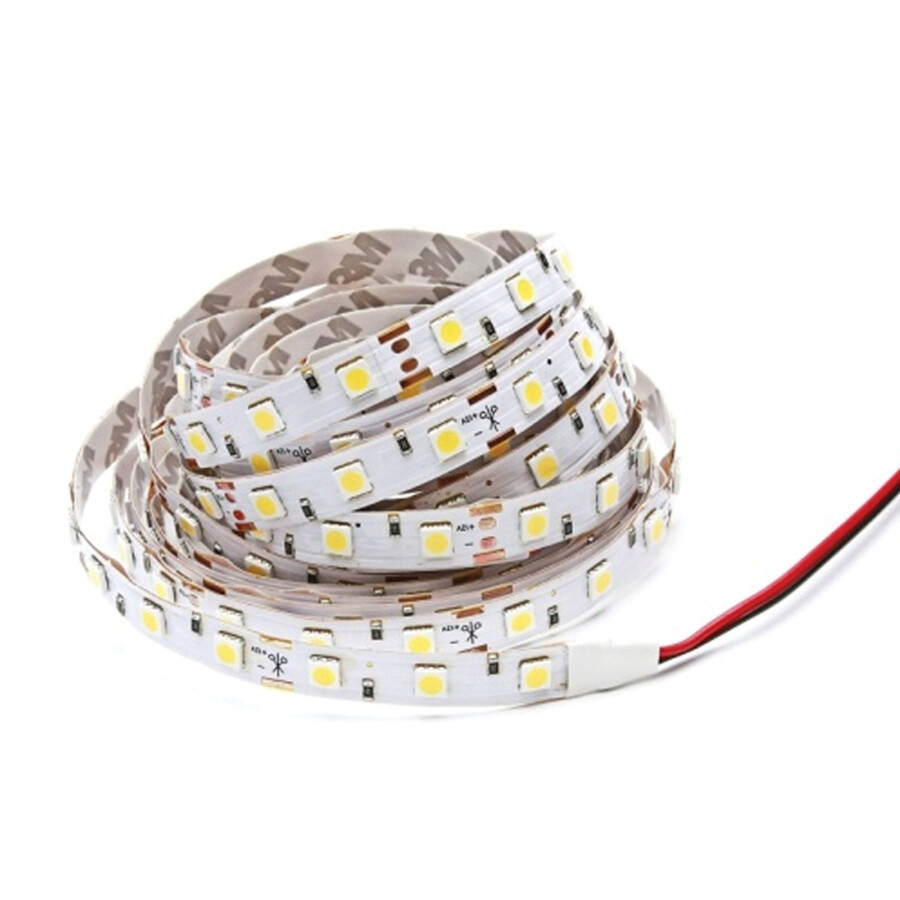

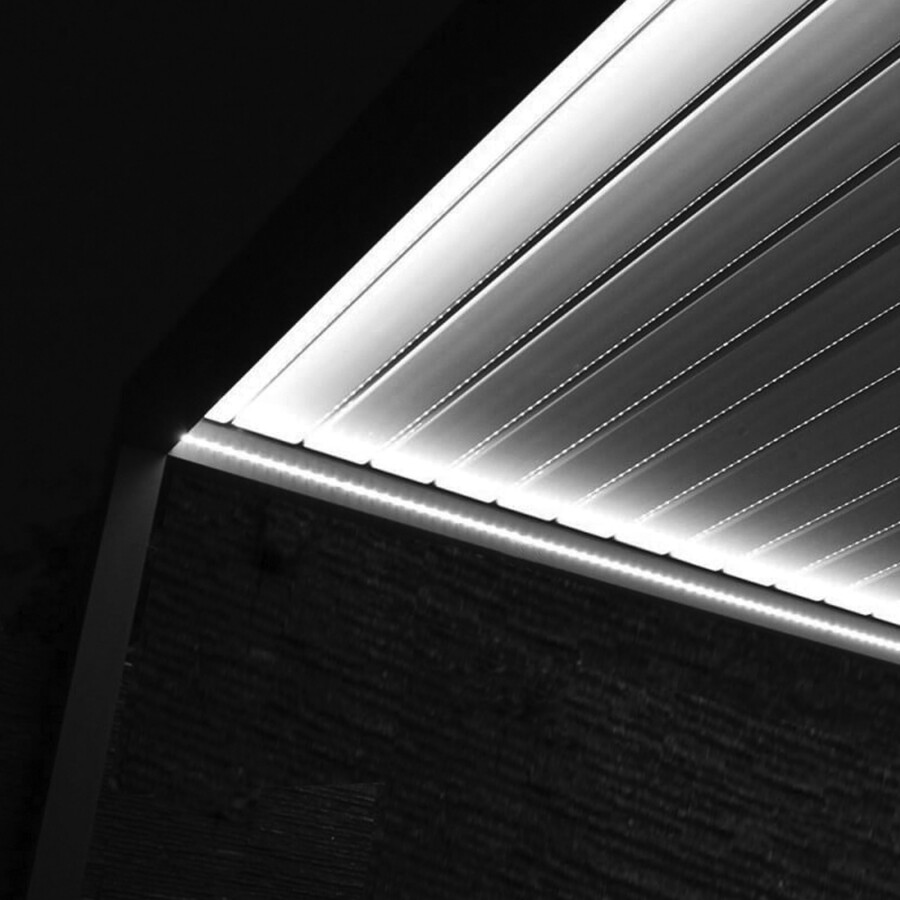

LED Tape's

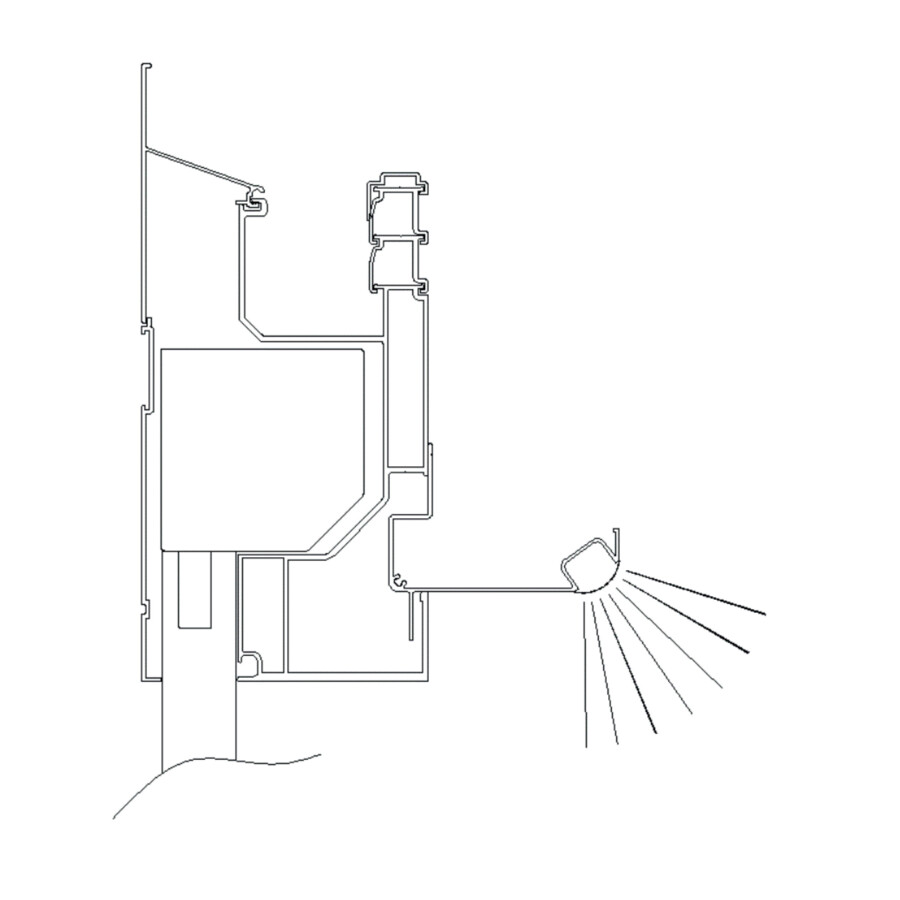

LED Lighting integrated with gutter
Standard colors:
-
Beams and supports:
RAL 7016 Structural colorAnthracite
-
Lammels:
RAL 9016 Mat
White
Method of operation
Lammels closed

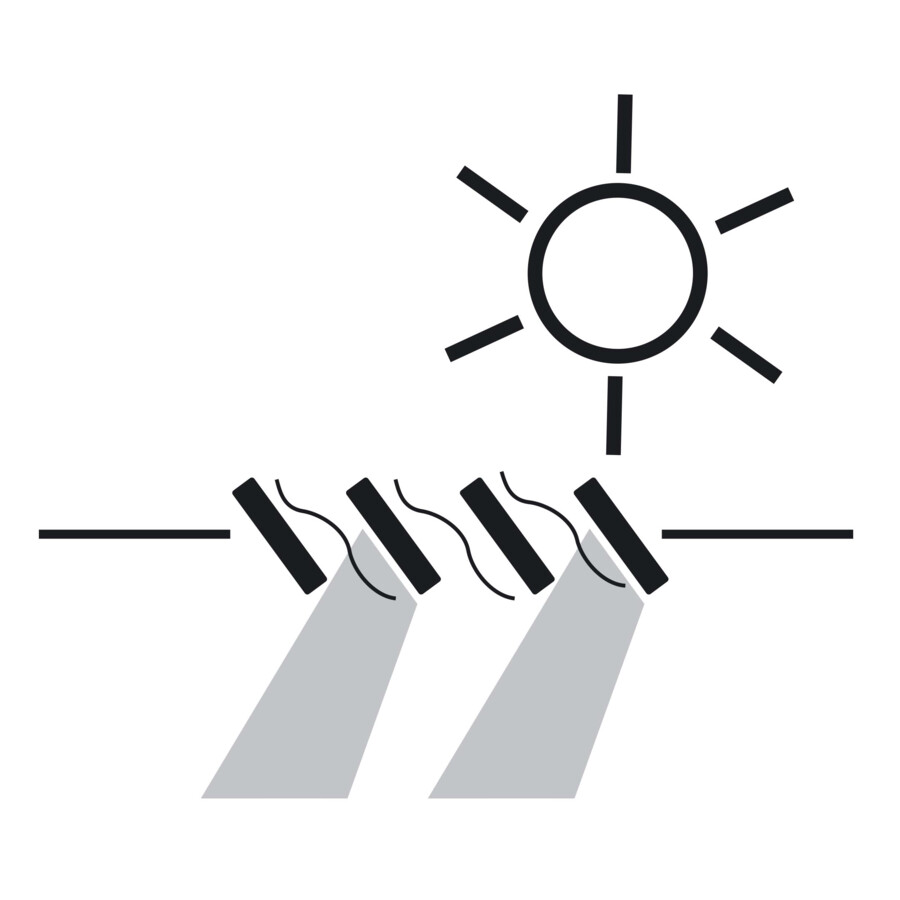

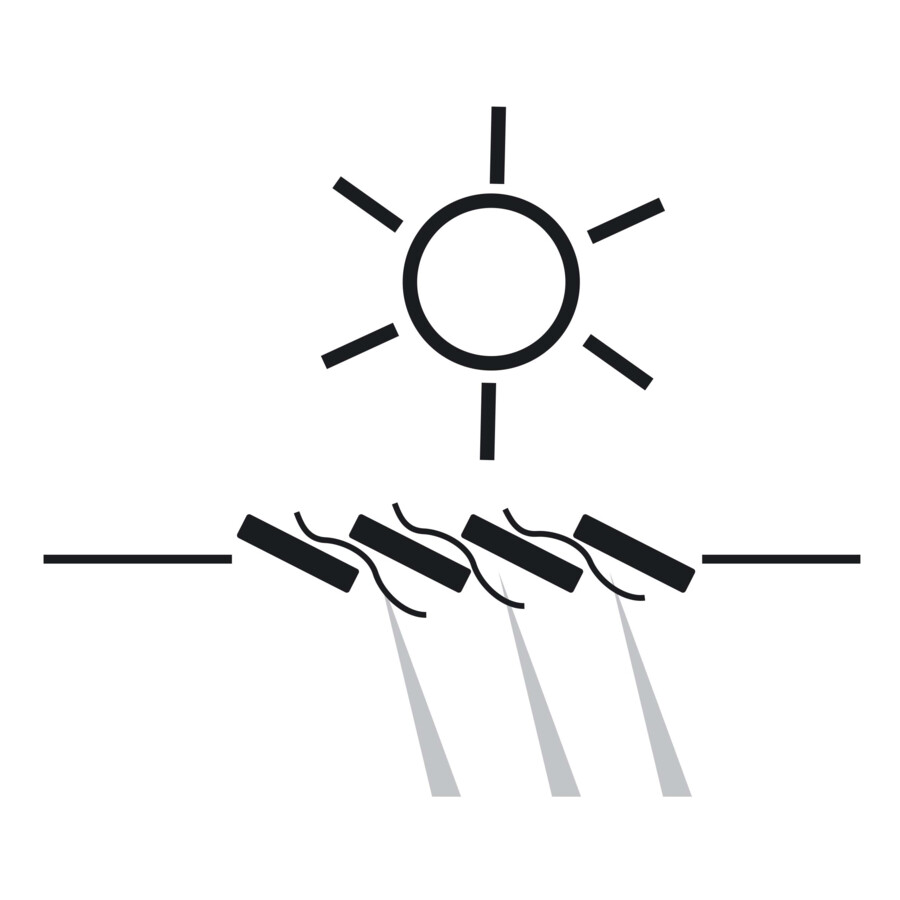

Lammels 45° opened
Lammels 125° opened

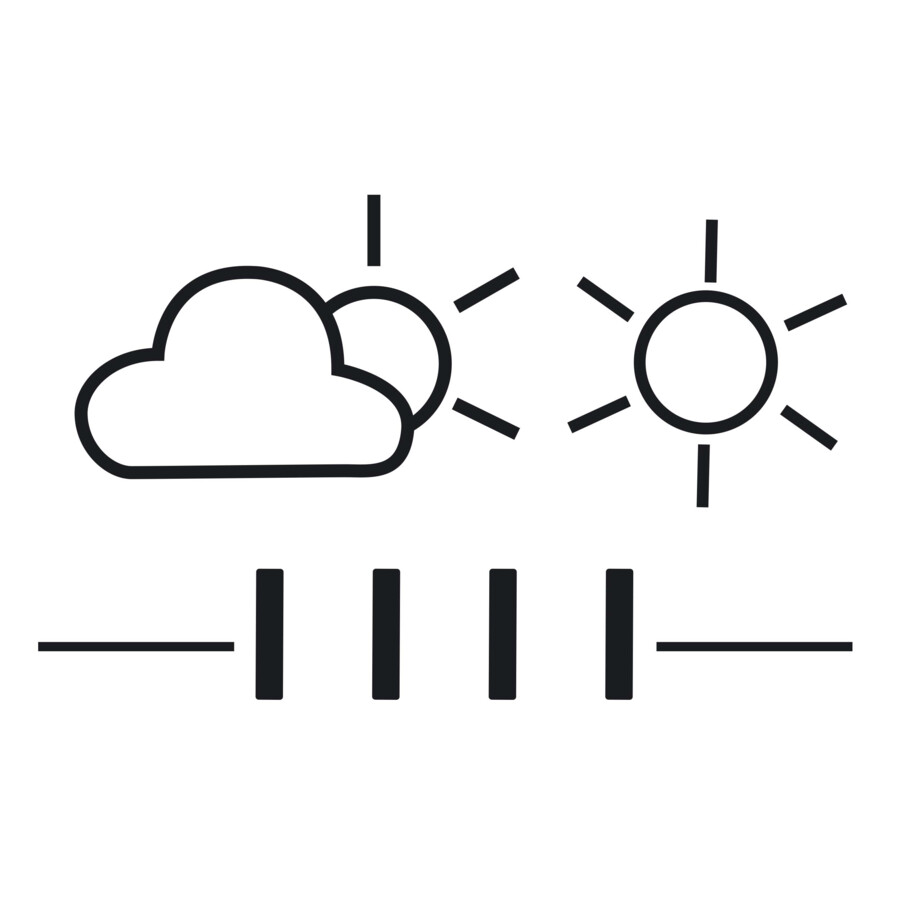

Lammels 90° opened
