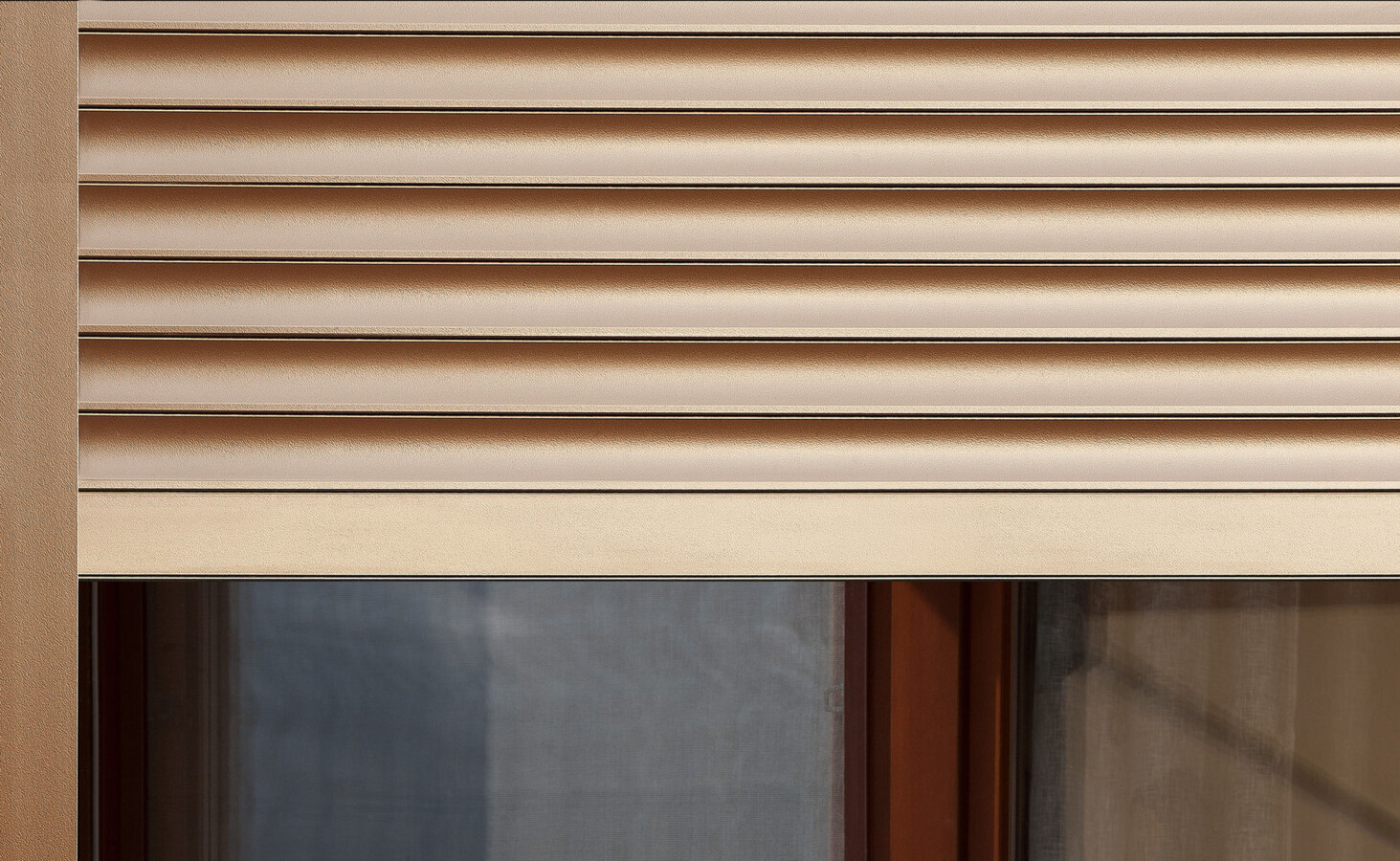

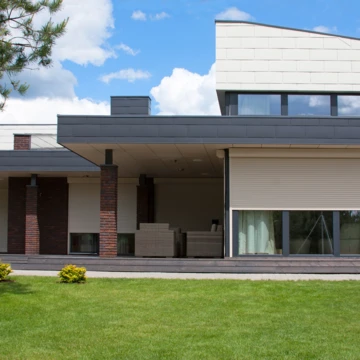

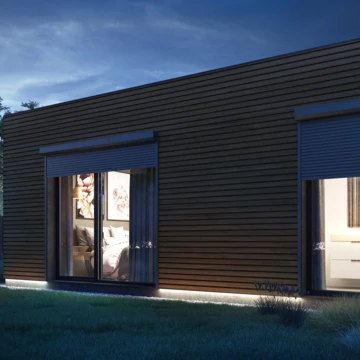

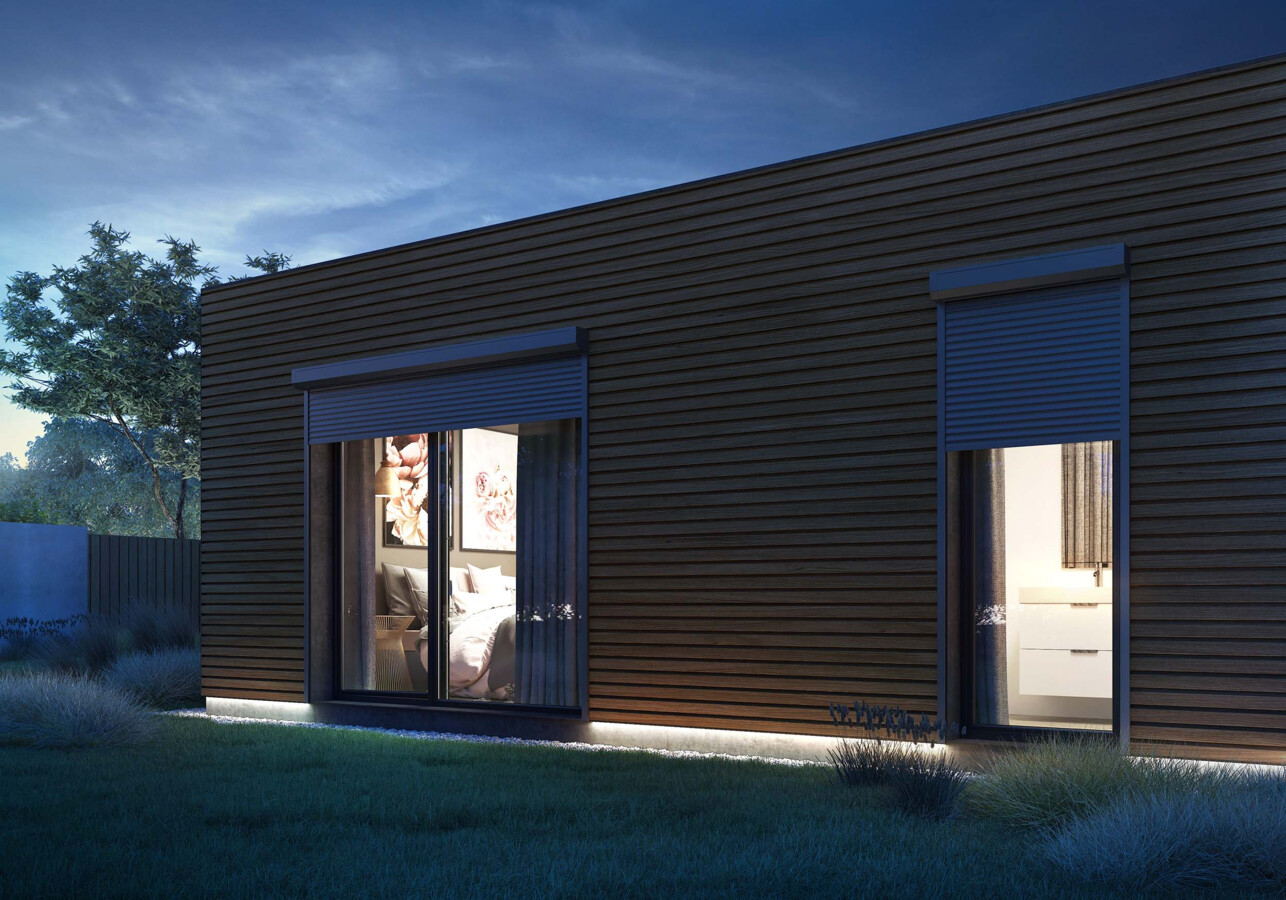

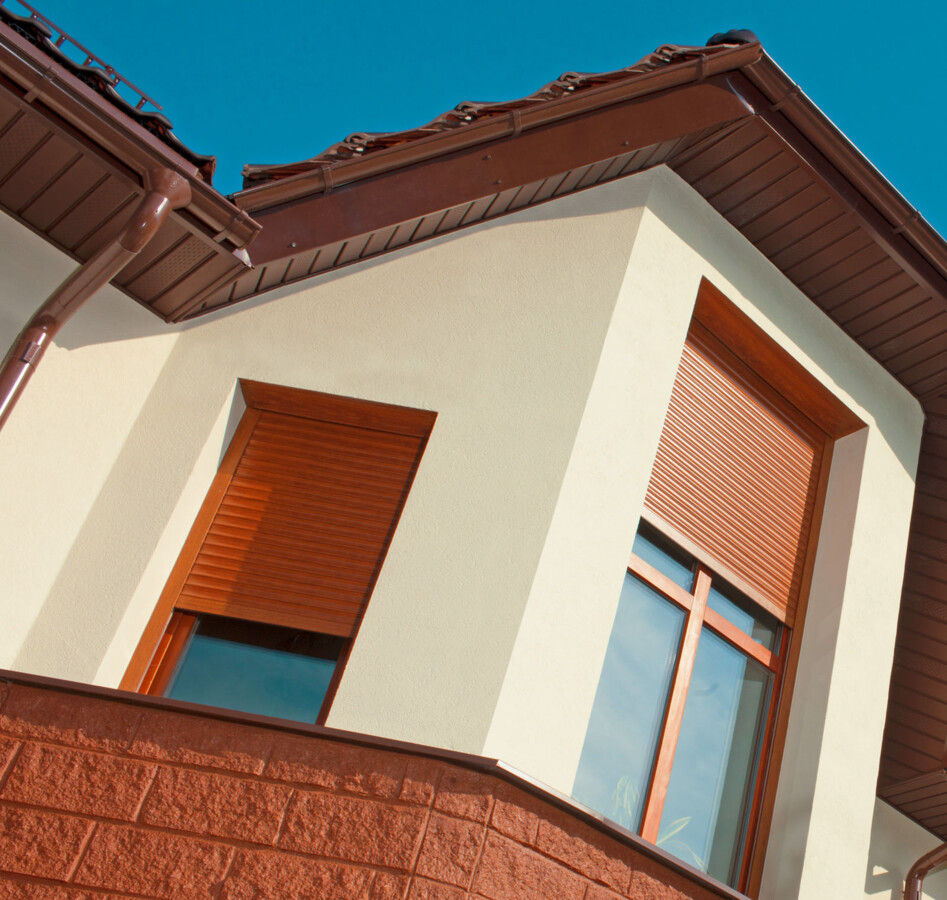

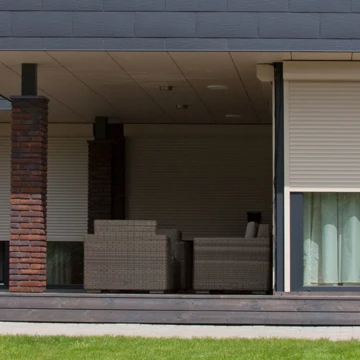

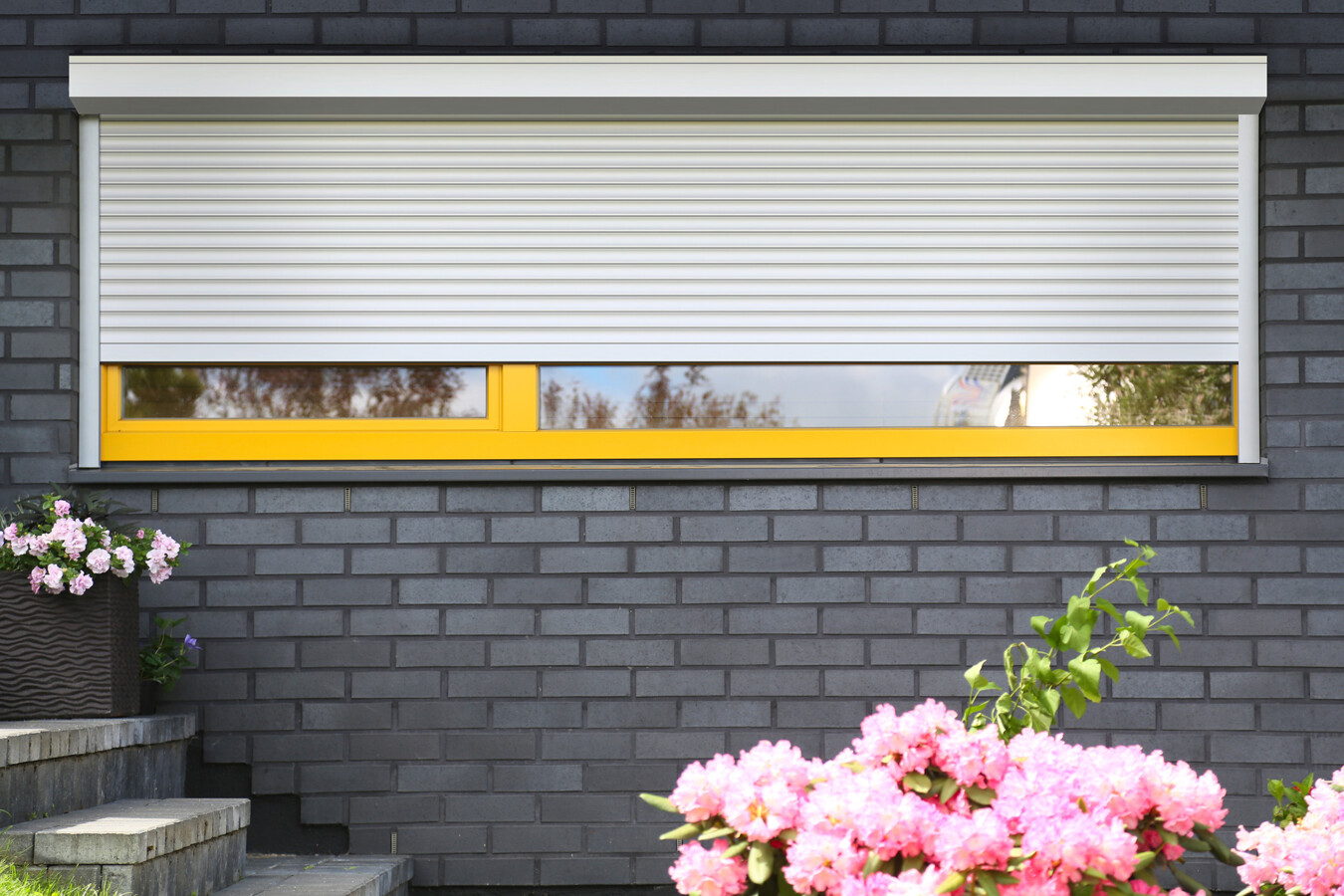

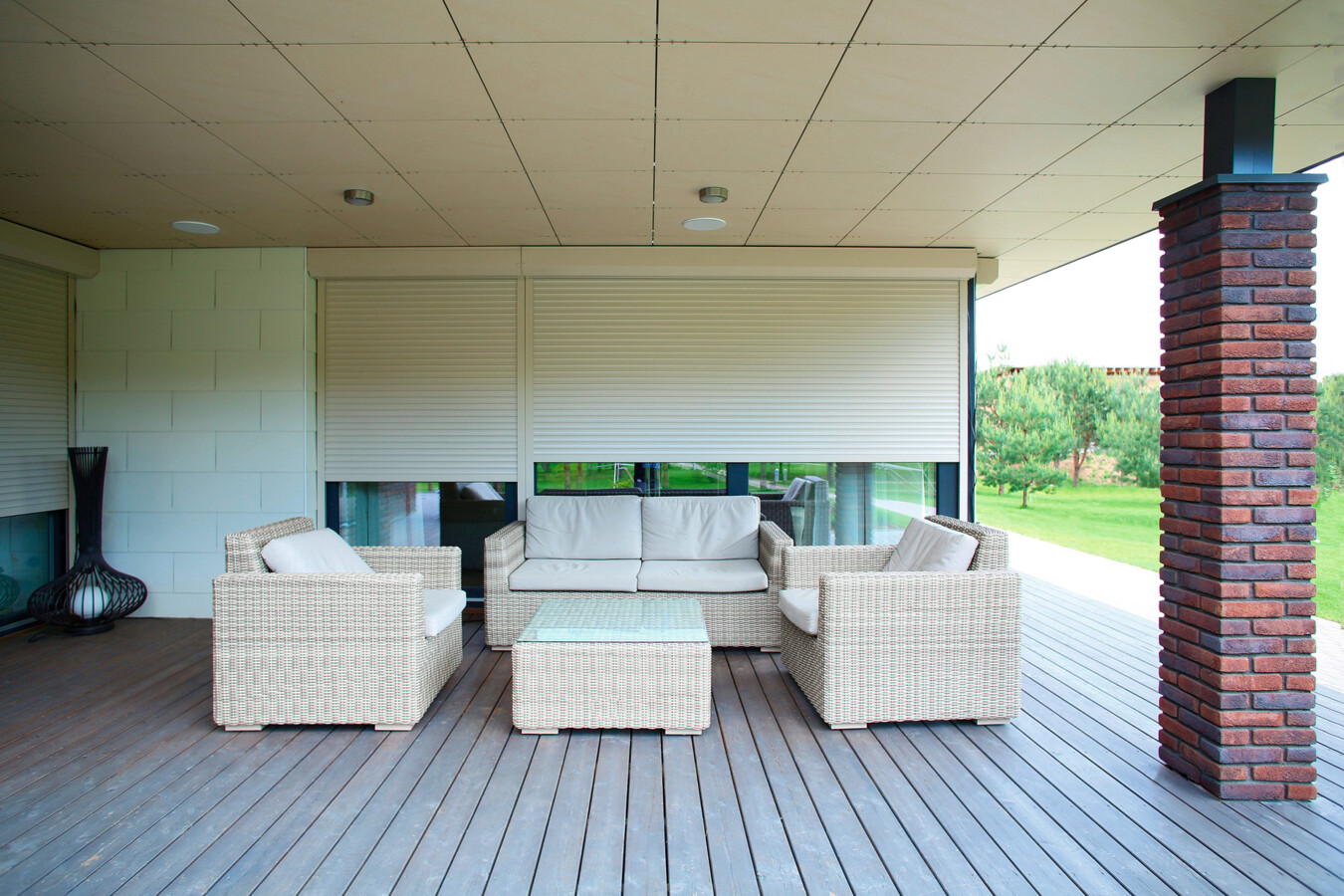

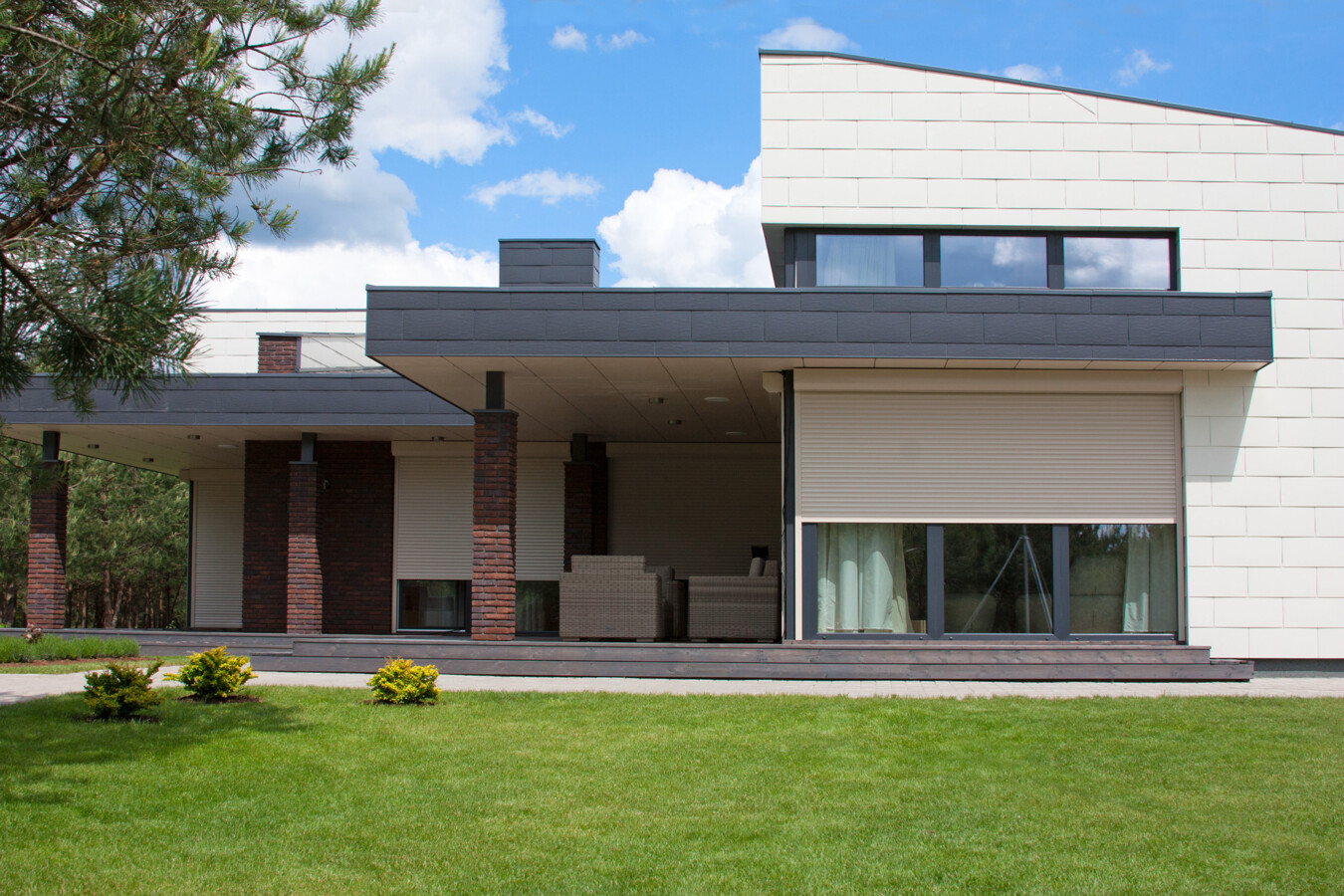

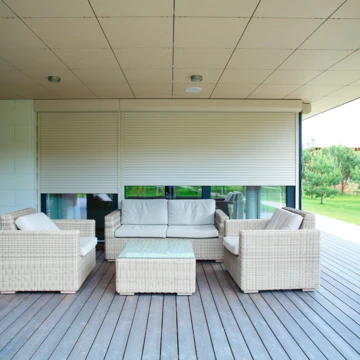

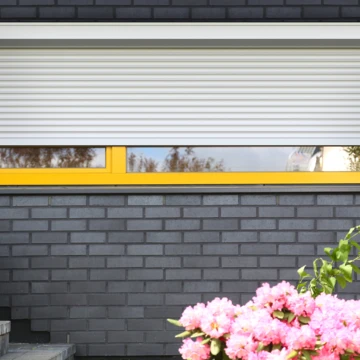

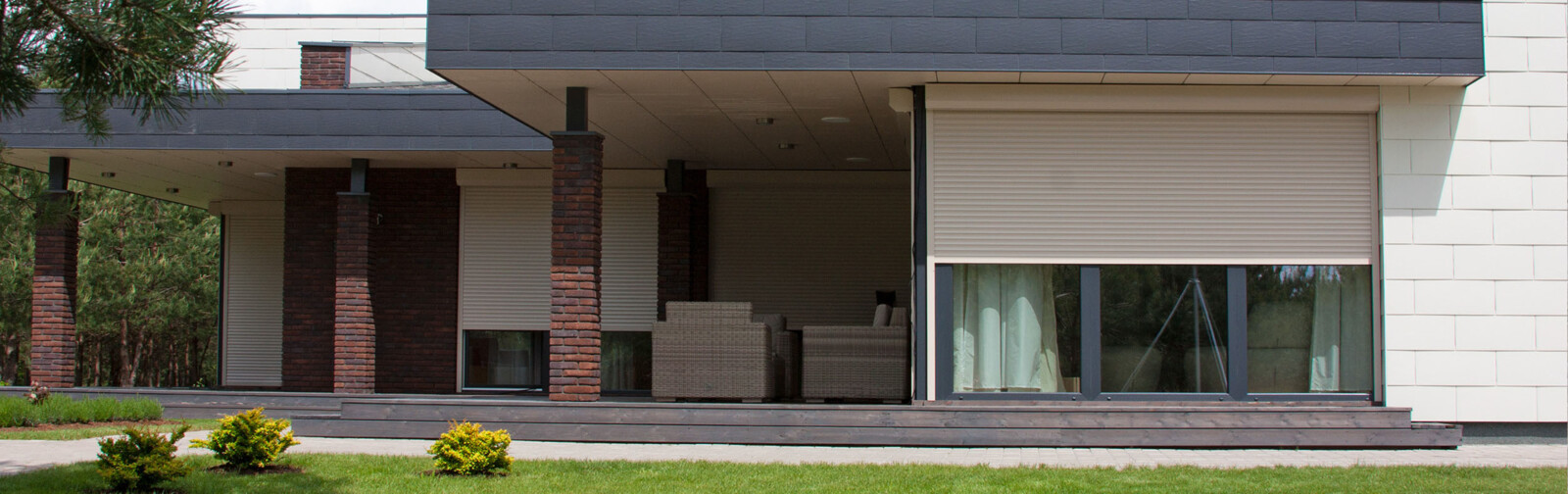

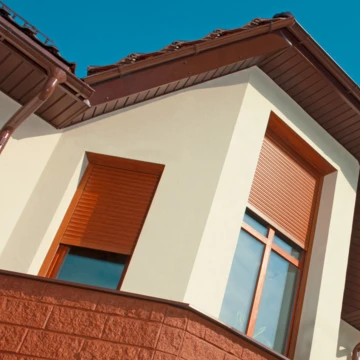

Roller shutters are one of the most efficient methods to protect buildings from burglary, as the active use of banks, boutiques and shopping centres shows. Roller shutters also help to maintain a pleasant interior atmosphere, protecting windows from bright sunlight, strong winds and rain, noise, dust and strangers. In winter, roller shutters serve as thermal insulation, while in summer they keep the house cool. They save a lot of energy. Roller shutter systems are aesthetically pleasing and harmoniously adapt to any architectural style, from classic to state-of-the-art trends. The use of roller shutters significantly increases the comfort and security of any building.

Parameters

profile height - 39 mm
profile thickness - 8.5 mm
max. width - 2800 mm
max. area - 6,3 m²
number of slats in 1 m height - 25.6 pieces
weight p/m² - 2.46 kg

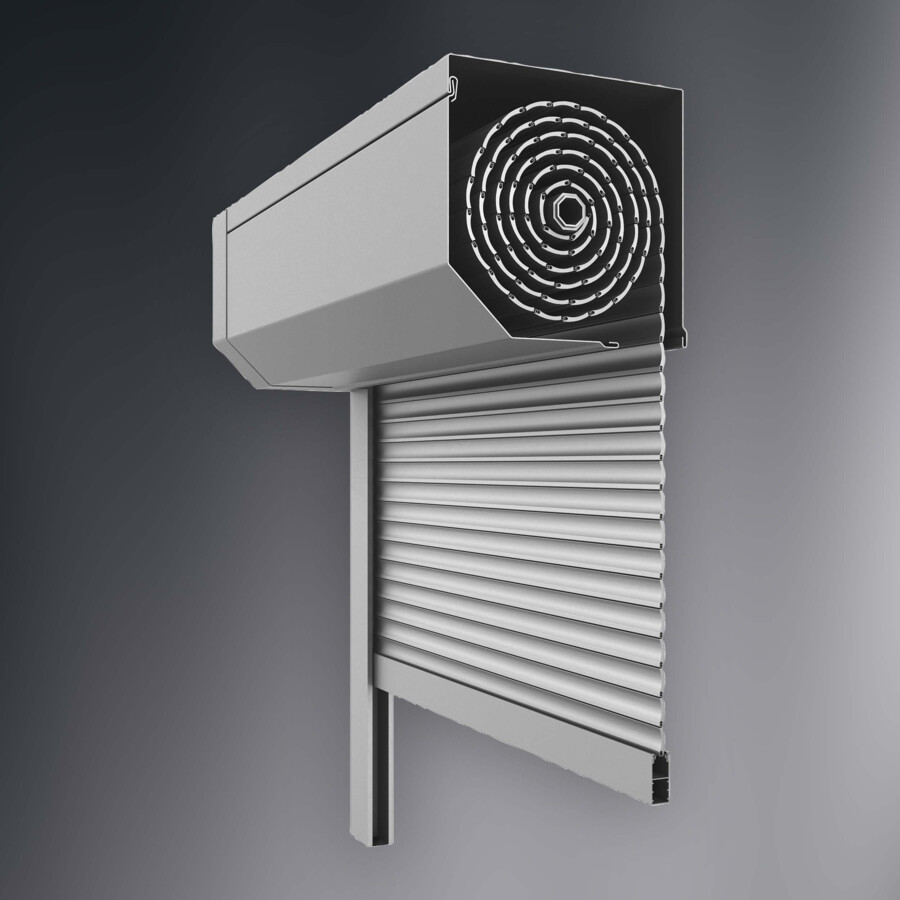

The advantage of the AR39 is its small rewind dimensions. In a box 150mm with tube FI60 a total height of 1800mm. The lamella has a weight of 2.46 kg / m² with an element width of 2800 mm, in a box 137 with a tube fi40.

Parameters

profile height - 41 mm
profile thickness - 8.5 mm
max. width - 3230 mm
max. area - 9,69 m²
number of slats in 1 m height - 24 pieces
weight p/m² - 2.54 kg

With an element width of 3230 mm and a slat weight of 2.54 kg / m², the AR41 can be rolled tightly together with a 150 box with a total height of 1300 mm.

Parameters

profile height - 45 mm
profile thickness - 8.5 mm
max. width - 3390 mm
max. area - 10,18 m²
number of slats in 1 m height - 22 pieces
weight p/m² - 2.67 kg

Parameters

profile height - 40 mm
profile thickness - 9 mm
max. width - 3370 mm
max. area - 9,44 m²
number of slats in 1 m height - 25 pieces
weight p/m² - 3.2 kg

The AR-40 is a solid profile with a slat weight of 3.2 kg/m² and an element width of 3370 with a wall thickness of 9 mm and a robust profile. This is ideal for front roller shutters.

Parameters

profile height - 40 mm
profile thickness - 9 mm
max. width - 4390 mm
max. area - 13,18 m²
number of slats in 1 m height - 25 pieces
weight p/m² - 4.8 kg

The ARH-40 profile can be recognized by the filled rigid foam. Thanks to the rigid foam, it is a stiff profile that can handle a higher wind load. The profile has an element width of 400 mm and the weight of the ARH40 is 4.8 kg/m².

Parameters

profile height - 52 mm
profile thickness - 13.5 mm
max. width - 3500 mm
max. area - 8,0 m²
number of slats in 1 m height - 19 pieces
weight p/m² - 2.97 kg

The profile AR-52 has a height of 52 mm, excellent rolling capacity, in a box 150 a total height of 120 can be achieved with a tube ø60. The maximum width is 3500 mm and the weight of the slats is only 2,97 kg/m².

Parameters

profile height - 41 mm
profile thickness - 8.5 mm
max. width - 3230 mm
max. area - 9,69 m²
number of slats in 1 m height - 24 pieces
weight p/m² - 2.54 kg

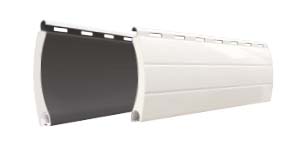

This is one of the few profiles that is bi-coloured. The Bicolor profile is available in anthracite and white or white and anthracite.

AR 41 T Bicolor, a two-coloured lamella The outer side is anthracite the inner side is white. The wise side preserves the interior and creates a friendly atmosphere.

Parameters

profile height - 41 mm
profile thickness - 8.5 mm
max. width - 3230 mm
max. area - 9,69 m²
number of slats at 1 m height - 24 pieces
weight p/m² - 2.54 kg

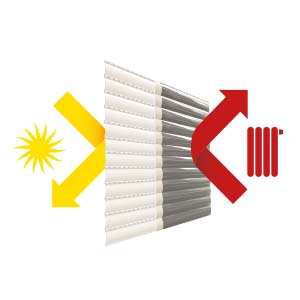

On the one hand, we have a standard Alutech colour and on the other hand we have a special silver colour.
a thermal shield with an increased amount of aluminium particles for a better coefficient of performance
insulation to reduce heat loss.
